Component Location Index

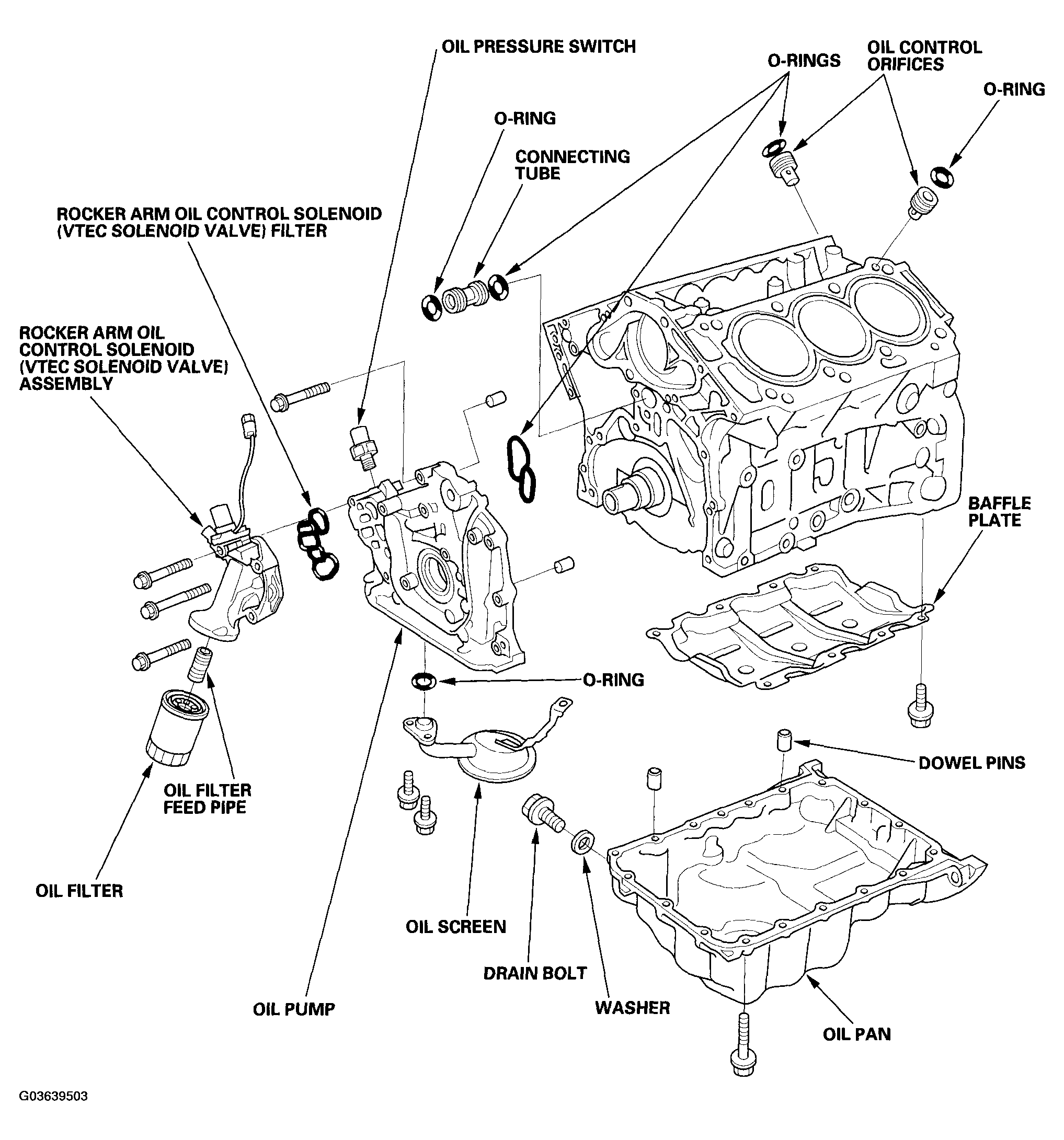

Fig 1: Identifying Engine Lubrication Components

G03639503

Courtesy of AMERICAN HONDA MOTOR CO., INC.
