Acura
>>
2003
>>
MDX Base
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Circuit Diagram
Circuit Diagram

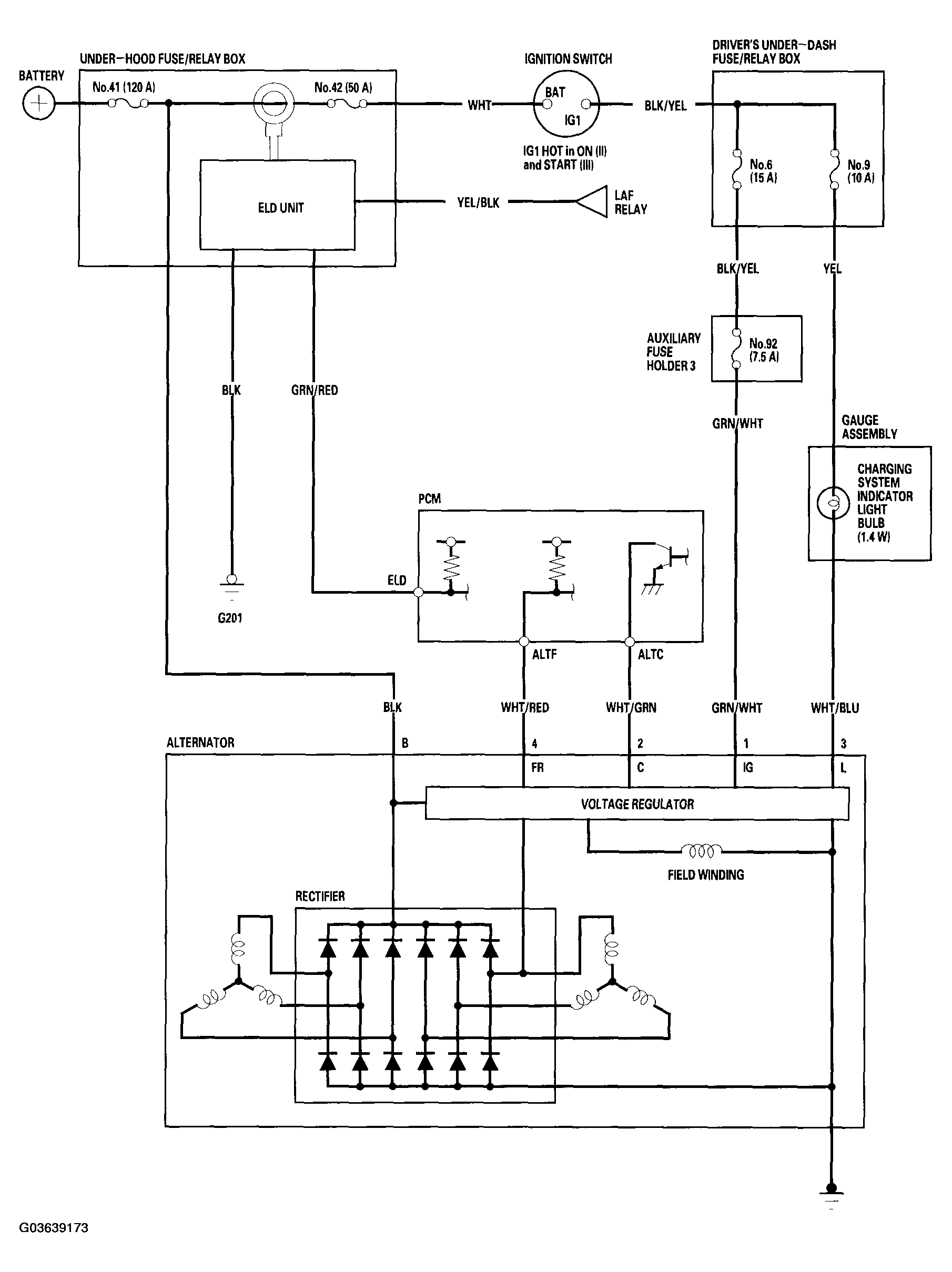

Fig 1: Identifying Charging System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
