Steering Linkage And Gearbox Inspection

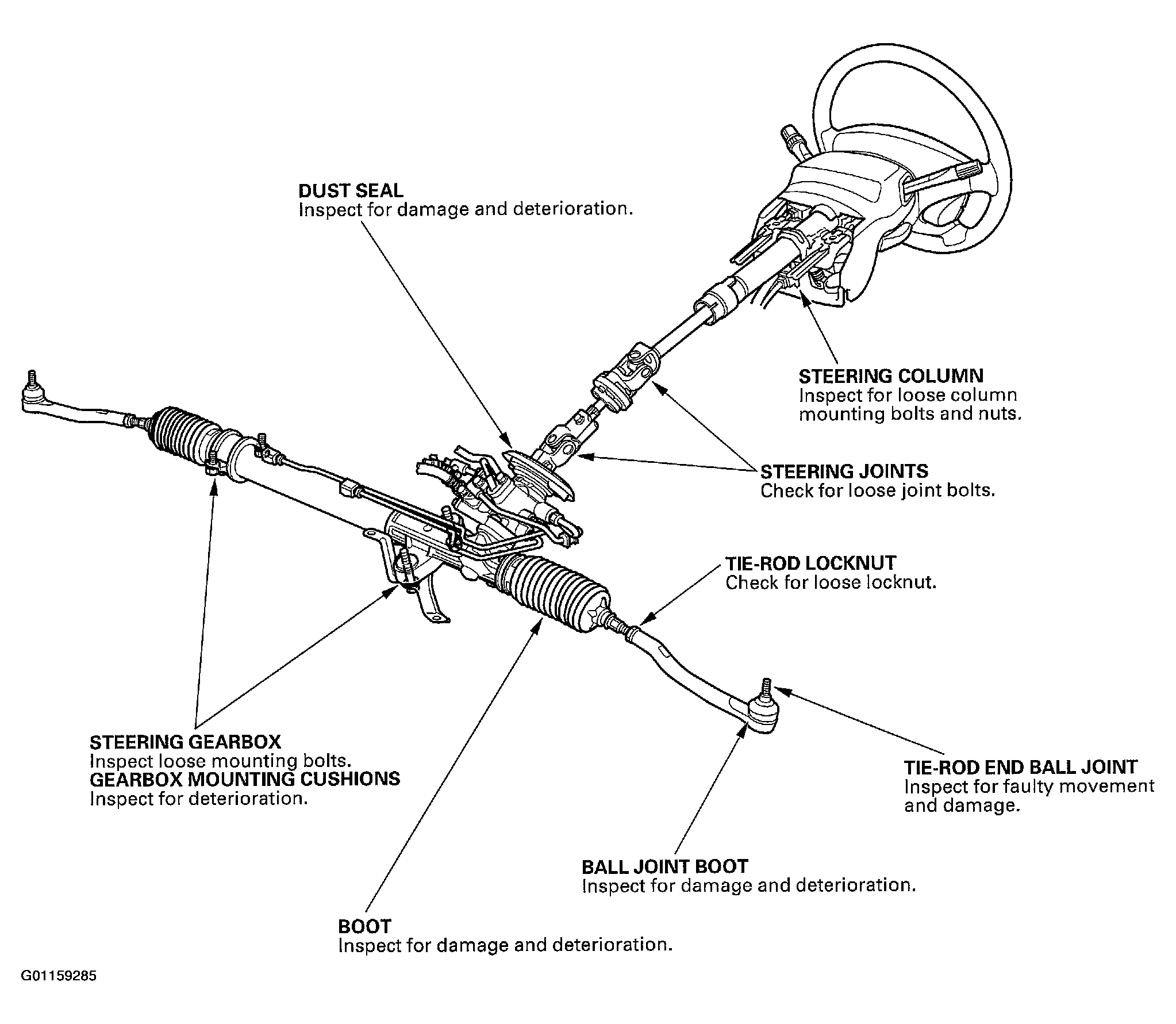

Fig 1: Exploded View Of Steering Linkage & Gearbox

G01159285

Courtesy of AMERICAN HONDA MOTOR CO., INC.
