Evaporator Temperature Sensor Test

  1. Dip the sensor in ice water, and measure the resistance between its terminals.

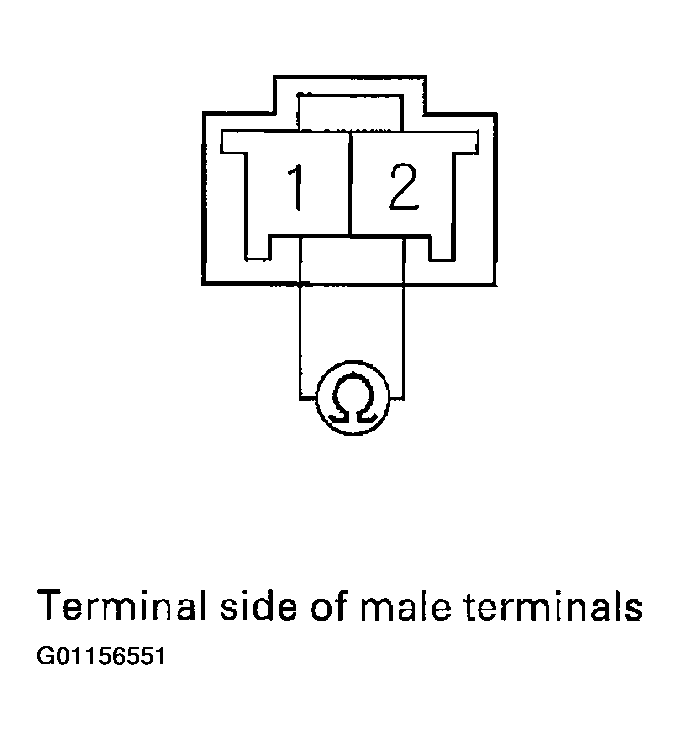

    Fig 1: Testing Evaporator Temperature Sensor
    G01156551Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Then pour hot water on the sensor, and check for a change in resistance.
  3. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.

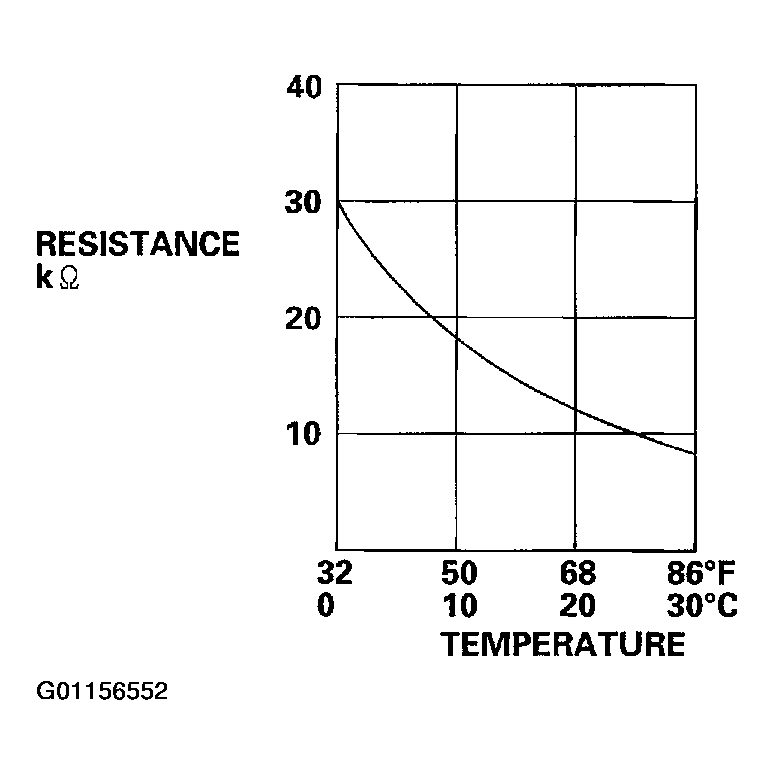

    Fig 2: Evaporator Temperature Sensor Resistance Graph
    G01156552Courtesy of AMERICAN HONDA MOTOR CO., INC.
