Removal & Installation
NOTE:
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage. Take care not to scratch the front seat, dashboard, and related parts.

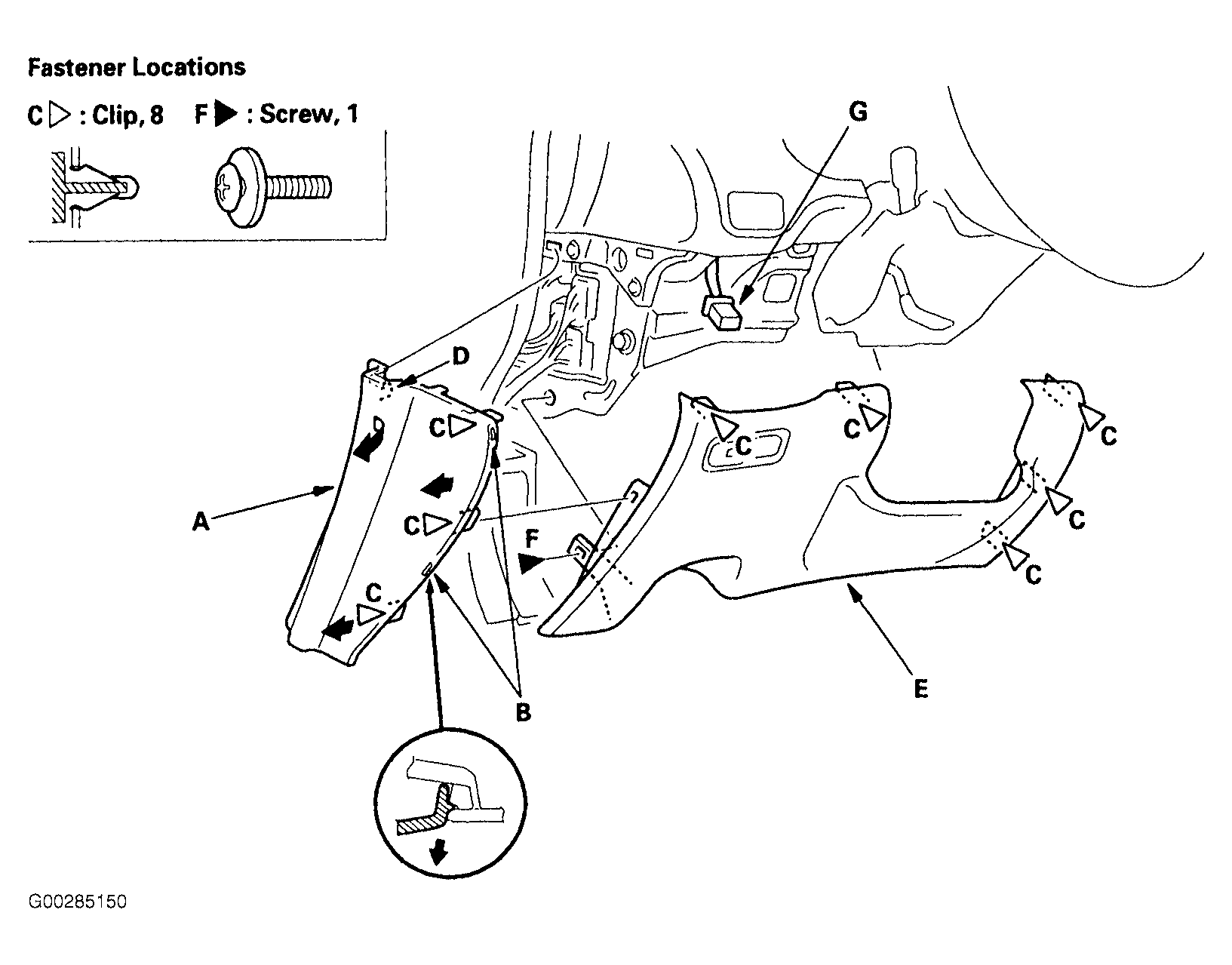

- While pulling out on the bottom of the left dashboard side cover "A", pry the rear edge portions "B" of the cover to detach the clips "C". Release the hook "D", then remove the cover. See Fig 1 .
- Remove the dashboard lower cover "A" in the following order.
- Remove the screw "F".
- Gently pull down on the lower cover to release the right clip "C", then detach the remaining clips "C".
- Disconnect the panel brightness controller connector "G", and remove the cover.
- Install the cover in the reverse order of removal, and ensure the connector is plugged in properly.
- Replace any damaged clips.
- Ensure the connector is plugged in properly.
- Push the clips of the cover into place securely.
