Check For Hole Before Installing REMAN Trans (ASN 0803-01)

Publication date: 2003-08-01
Reference number: ASN 0803-01

CHECK FOR HOLE BEFORE INSTALLING REMAN TRANS

TECHNICAL SERVICE BULLETIN

Reference Number(s): ASN 0803-01, Date of Issue: August, 2003

ACURA:	1999-2003 3.2TL; 2001-2003 3.2CL; 2001-2002 MDX
CATEGORY:	Acura Service News
APPLIES TO:	1999-2003 3.2TL; 2001-2003 3.2CL; 2001-2002 MDX

SERVICE INFORMATION

Before installing a remanufactured transmission in a '99-03 3.2TL, '01-03 3.2CL, or '01-02 MDX, make sure you inspect the transmission.

'99-03 3.2TL Premium : The '99-03 3.2TL Premium uses a separate speed sensor for the power steering system that is driven by the differential speedometer. This speed sensor requires a hole in the transmission housing.

If there isn't a hole (just a cavity) for the sensor, you must exchange the transmission for one that has a hole. If the hole is plugged, you just need to remove the plug.

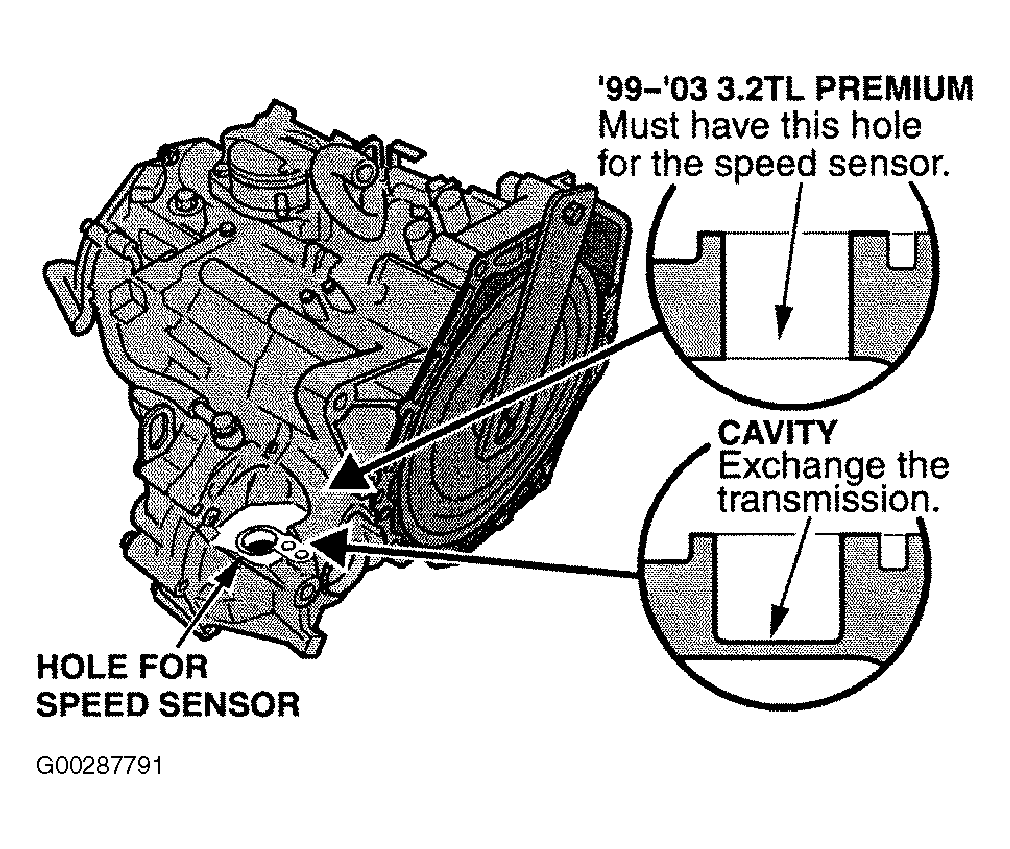

Fig 1: Checking for Hole for Speed Sensor

'99-03 3.2TLs (except '99-03 3.2TL Premium), '01-03 3.2CLs, and '01-02 MDXs : If there is a hole (used for the '99-03 3.2TL Premium for the differential driven speed sensor), you must plug it before installing the transmission. Use the plug from the core transmission, or order the following parts to plug it:

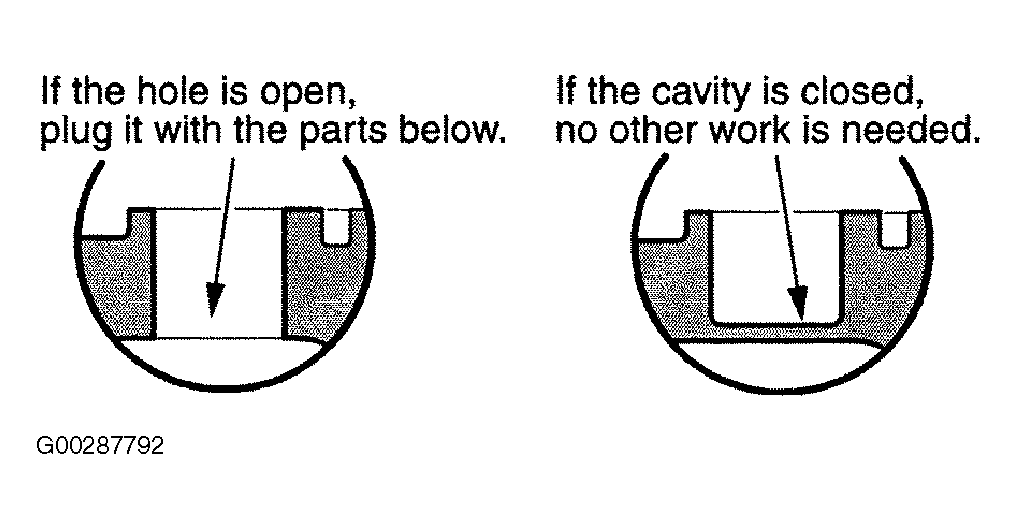

Fig 2: Speed Sensor Hole & Cavity

PART INFORMATION

Description	P/N
Cap	23811-P8F-000
Flange bolt (8 x 30 mm)	95701-08030-08
O-ring (23.5 x 2 mm)	91313-611-010
