Lift and Support Points

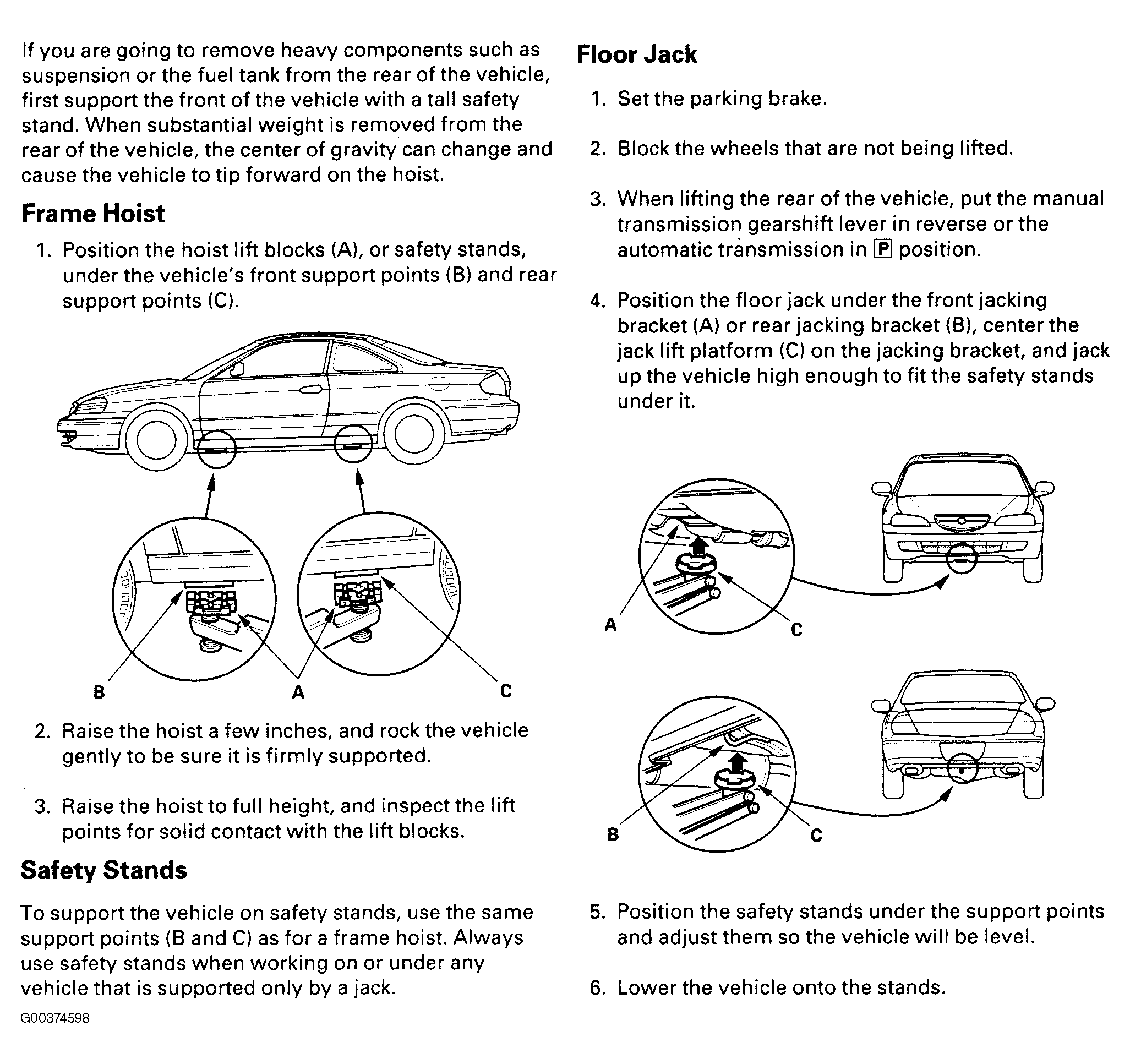

Fig 1: Lifting & Supporting Points

G00374598

Courtesy of AMERICAN HONDA MOTOR CO., INC.
