DTC 54: Fail-Safe Relay

WARNING: This page is about a different variant/trim than selected.

For DTC testing chart, see Fig 1 , Fig 2 .

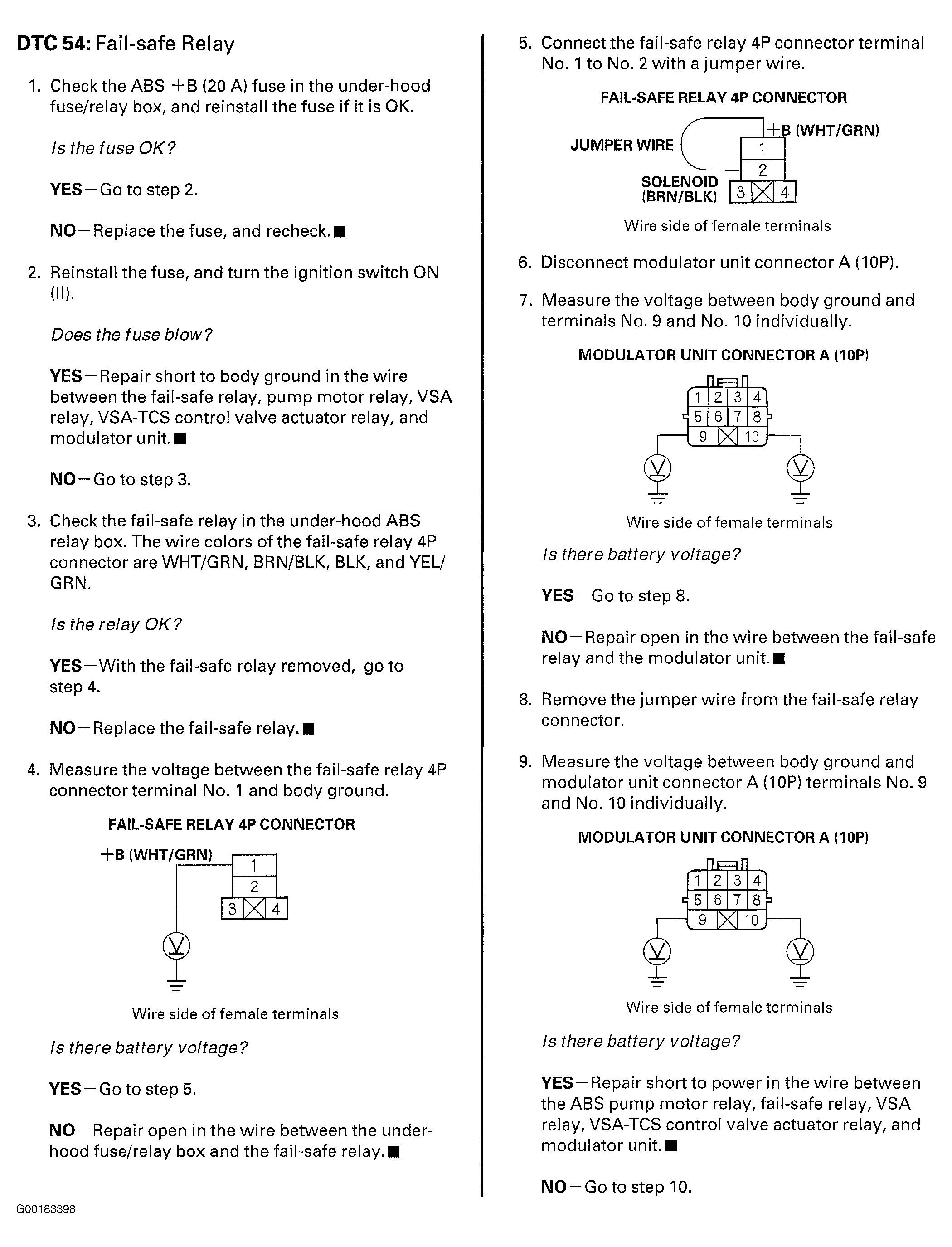

Fig 1: DTC 54: Fail-Safe Relay Trouble Shooting Chart (1 of 2)
G00183398Courtesy of AMERICAN HONDA MOTOR CO., INC.

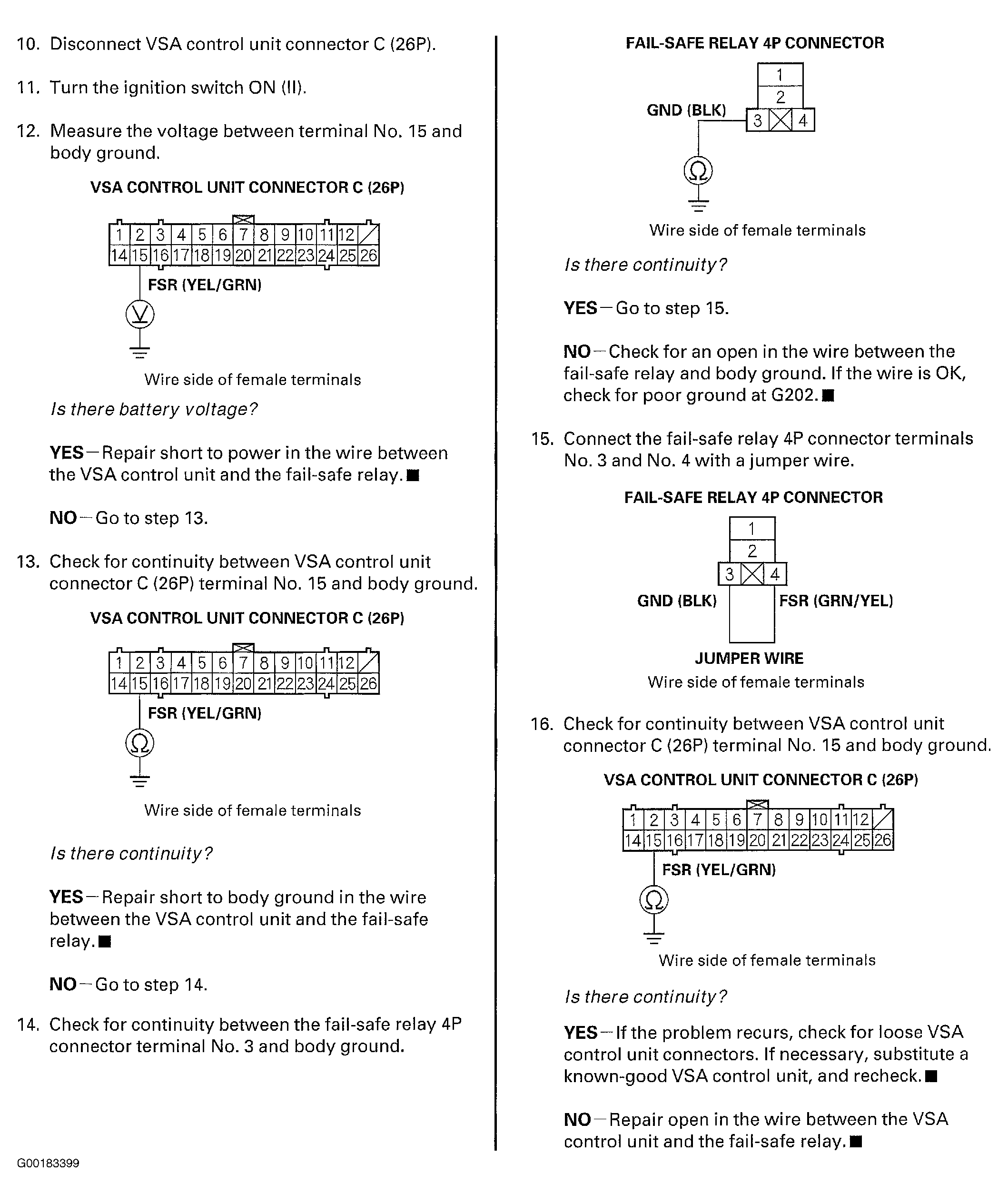

Fig 2: DTC 54: Fail-Safe Relay Trouble Shooting Chart (2 of 2)
G00183399Courtesy of AMERICAN HONDA MOTOR CO., INC.
