DTC 25: Yaw Rate Sensor

WARNING: This page is about a different variant/trim than selected.

For DTC testing chart, see Fig 1 , Fig 2 and Fig 3 .

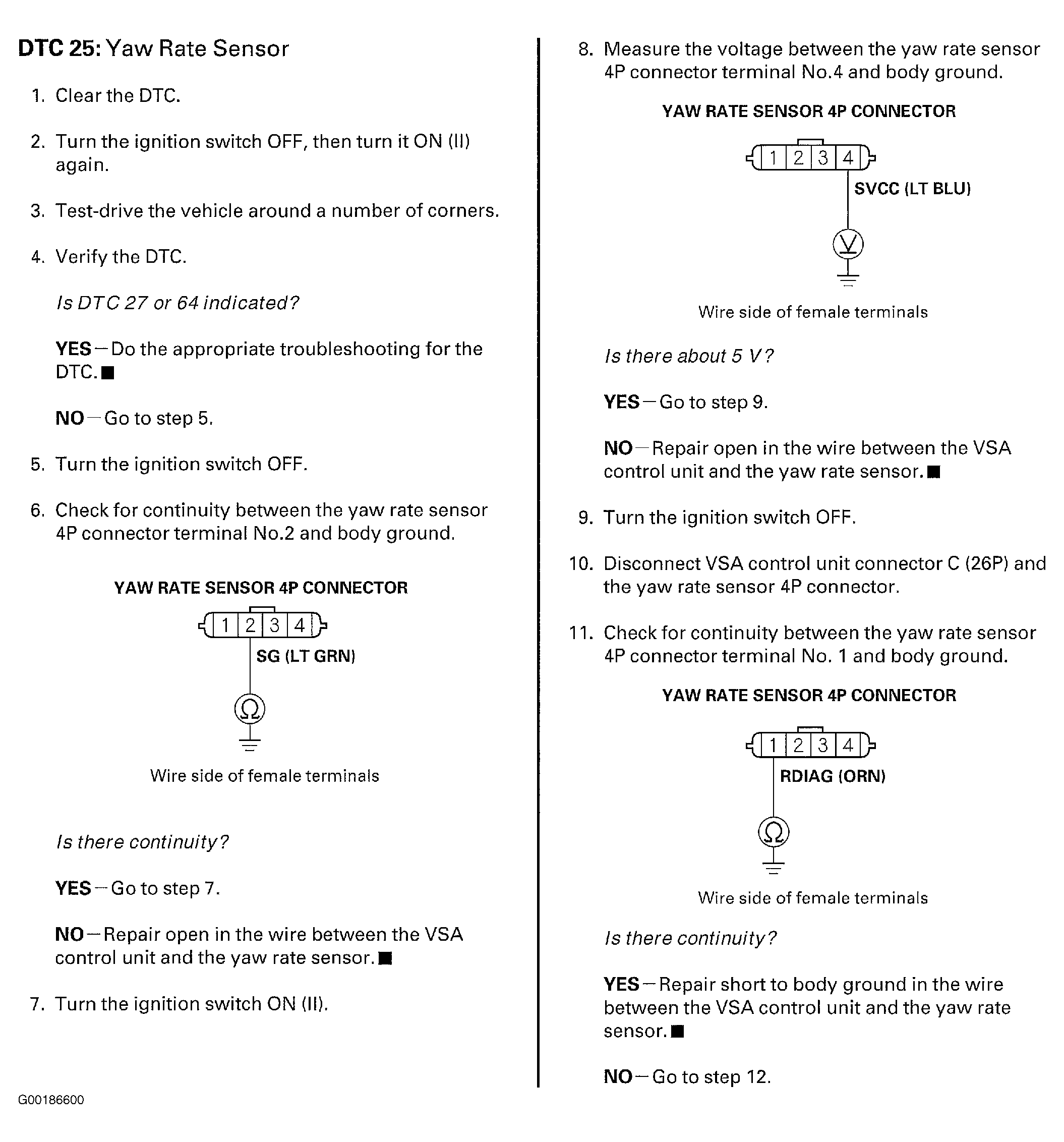

Fig 1: DTC 25: Yaw Rate Sensor Trouble Shooting Chart (1 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

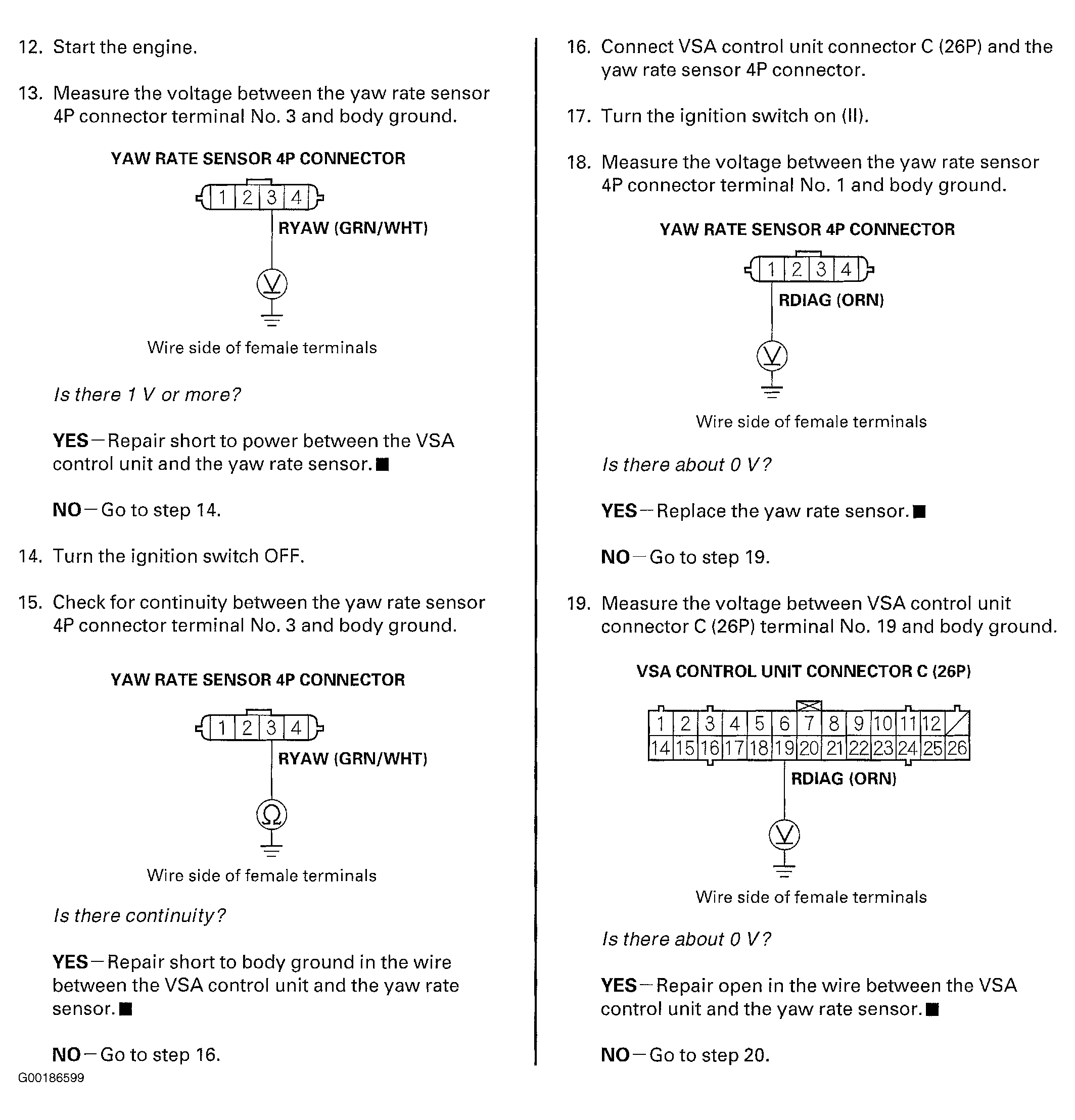

Fig 2: DTC 25: Yaw Rate Sensor Trouble Shooting Chart (2 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

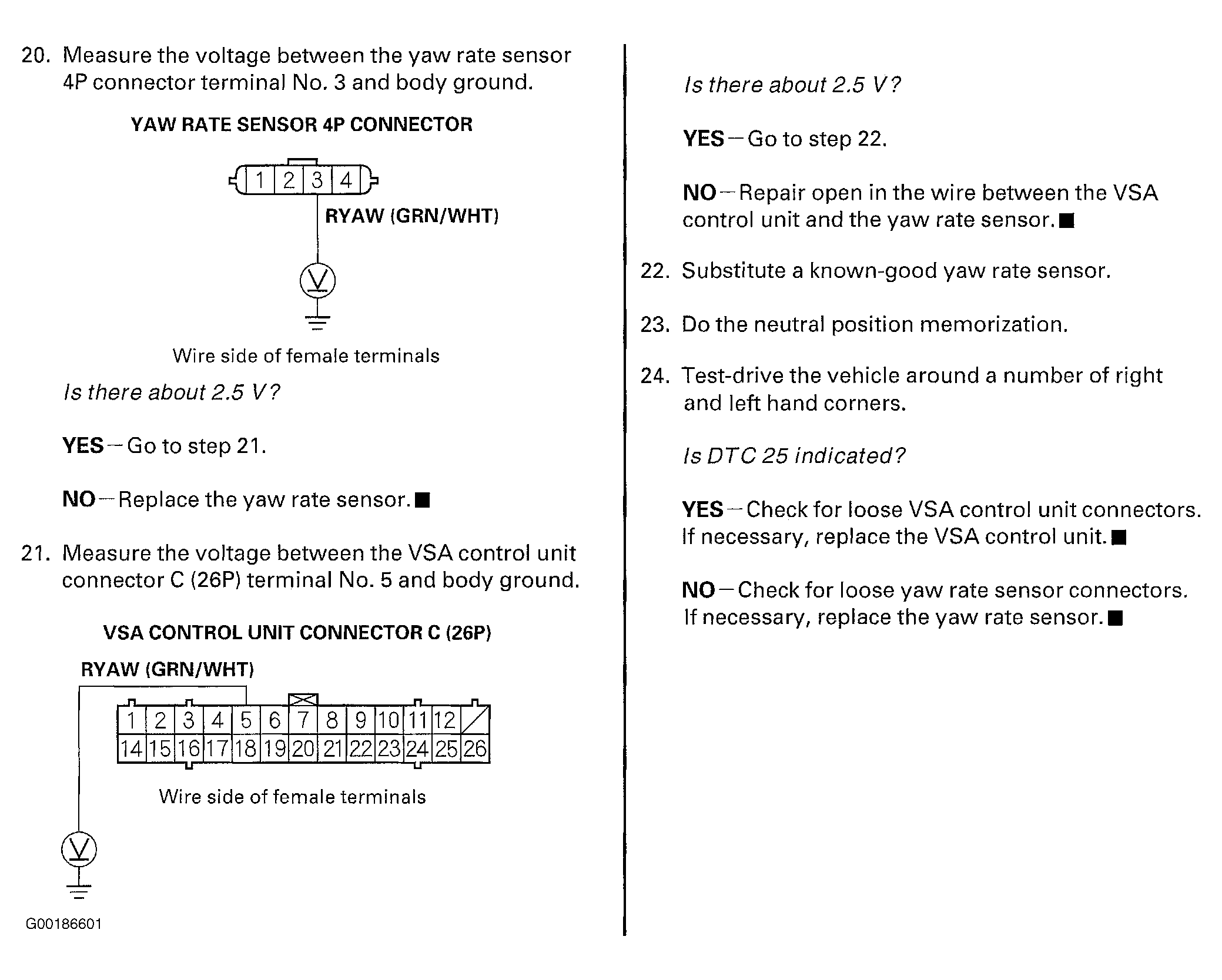

Fig 3: DTC 25: Yaw Rate Sensor Trouble Shooting Chart (3 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
