FUEL TANK (3.2tl): Installation

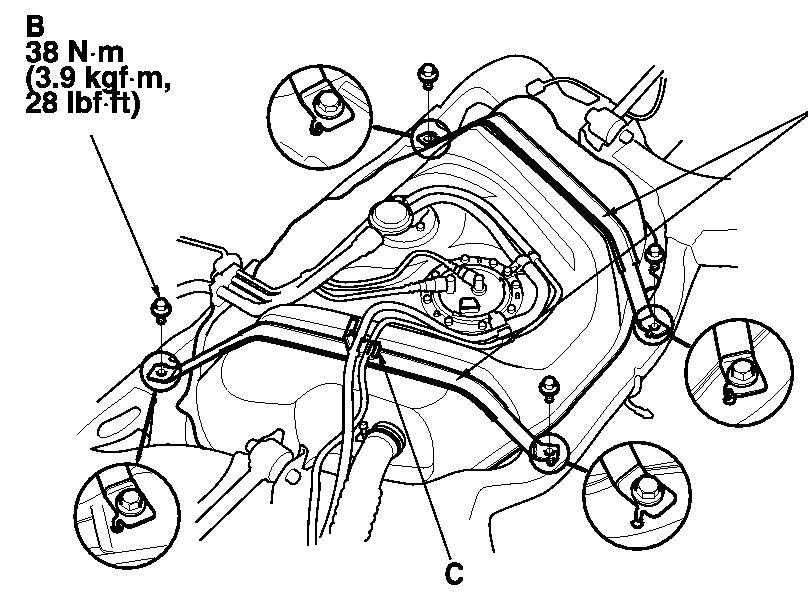

Fig 1: Fuel Tank Bolts, Straps and Clip With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Install the fuel tank straps (A), and tighten the bolts (B). Install the hose to the pipe holder (C).

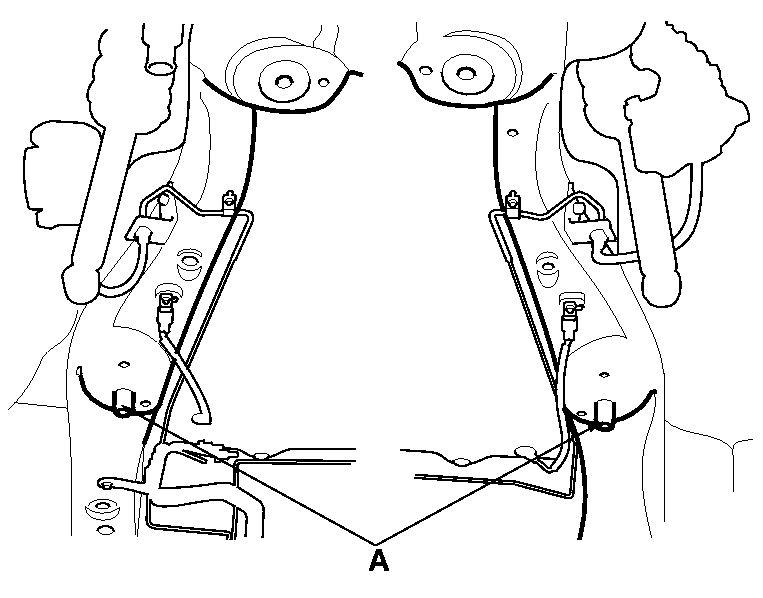

Fig 2: Rear Suspension Sub-Frame Pin alignment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Place the jack, or support, under the rear suspension sub frame. Install the rear suspension sub frame, aligning the pins (A) with the holes in the rear suspension sub frame.
Install the remaining parts in the reverse order of removal.
After installing, adjust the wheel alignment. See WHEEL ALIGNMENT PROCEDURES .
