Home >> Acura >> 2003 >> 3.2CL Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock/Traction Control >> Diagnostic Tests (TCS) >> DTC 36: Throttle Position Sensor Output (THLOUT) Signal

DTC 36: Throttle Position Sensor Output (THLOUT) Signal

For DTC testing chart, see Fig 1 .

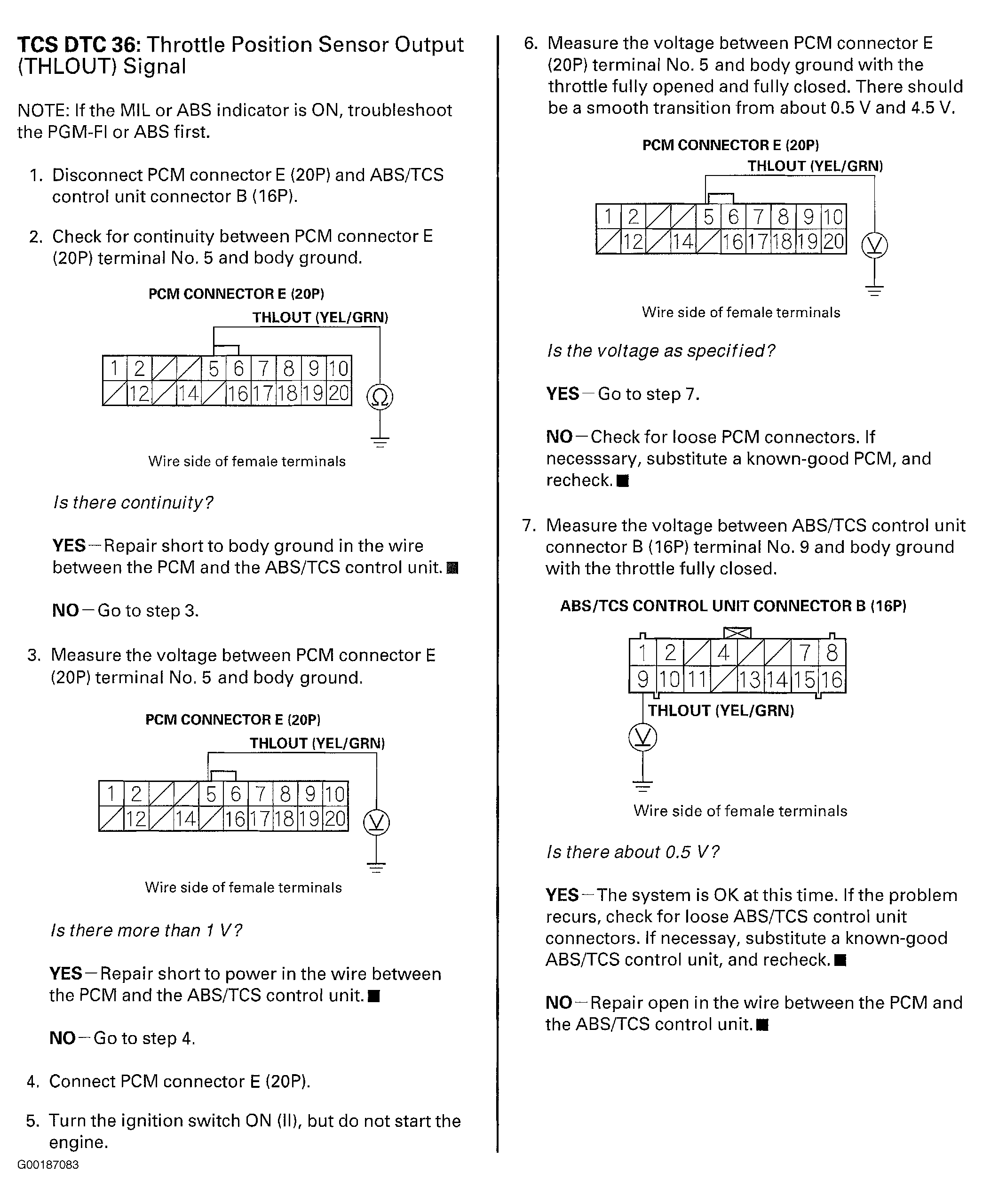

Fig 1: DTC 36: Throttle Position Sensor Testing Chart

G00187083

Courtesy of AMERICAN HONDA MOTOR CO., INC.
