DTC 28: TCS Relay

For DTC testing chart, see Fig 1 and Fig 2 .

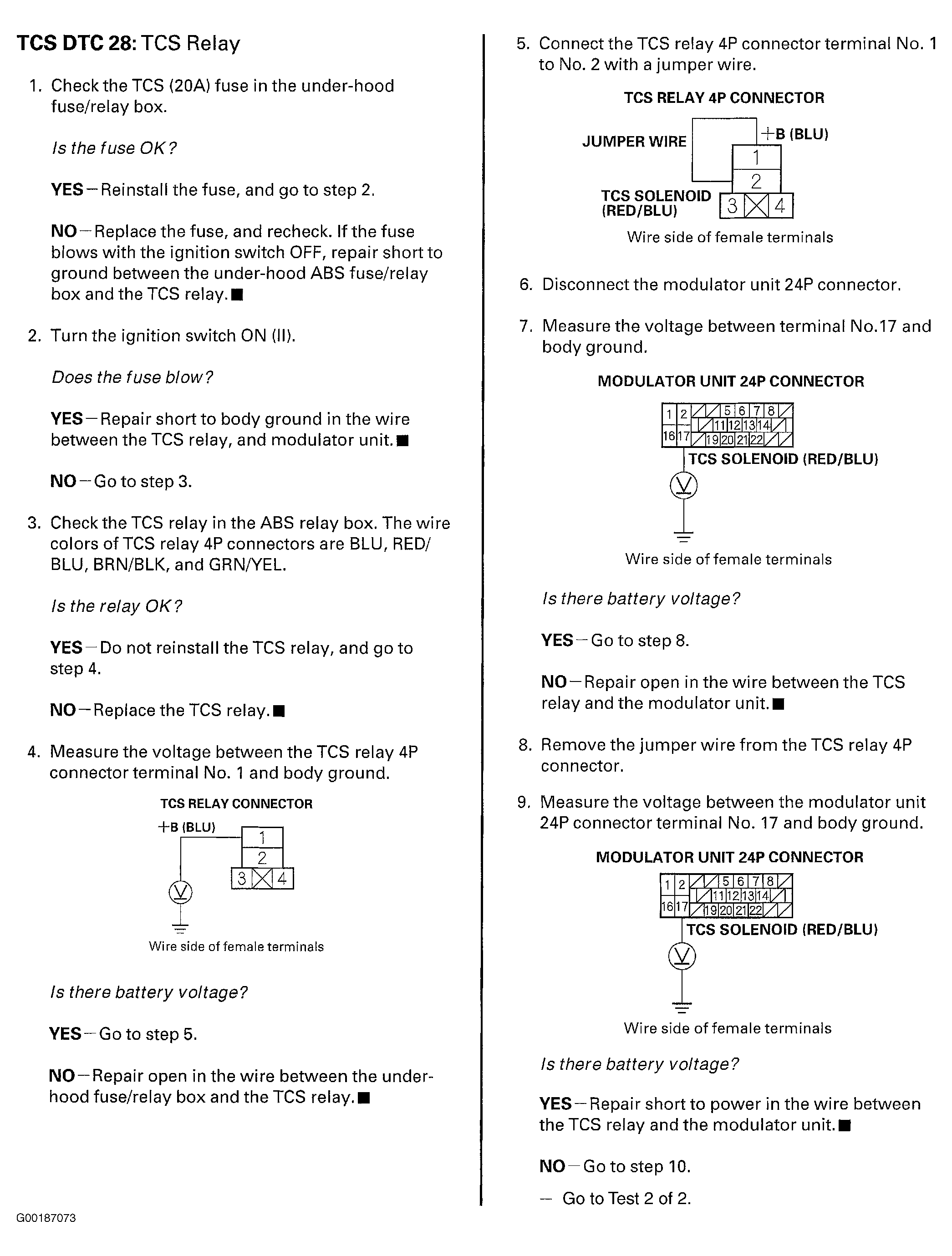

Fig 1: DTC 28: TCS Relay Testing Chart (1 of 2)
G00187073Courtesy of AMERICAN HONDA MOTOR CO., INC.

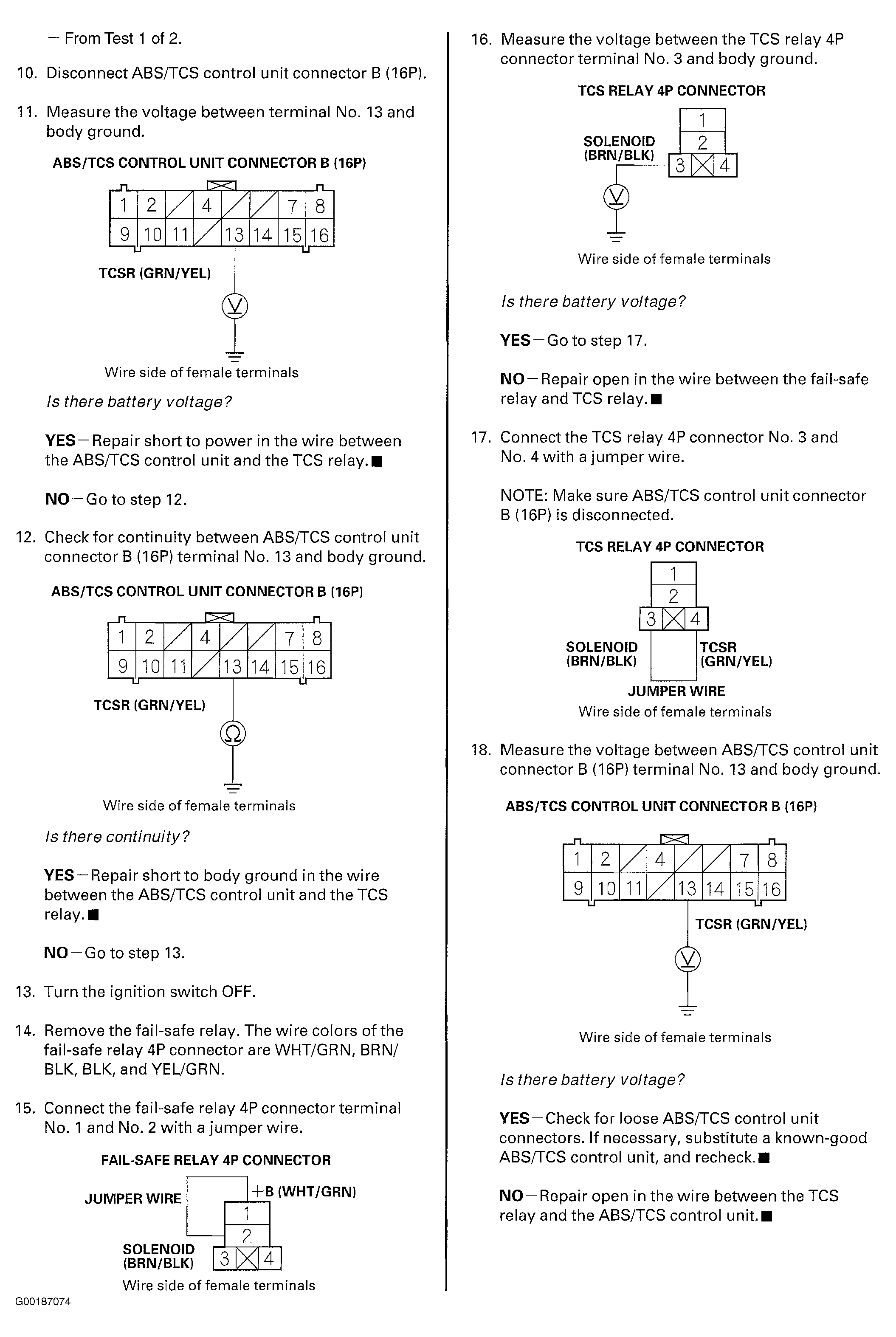

Fig 2: DTC 28: TCS Relay Testing Chart (2 of 2)
G00187074Courtesy of AMERICAN HONDA MOTOR CO., INC.
