Front Seat Linkage Assembly

NOTE: For disassembly and reassembly information, see Fig 1 and Fig 2 .

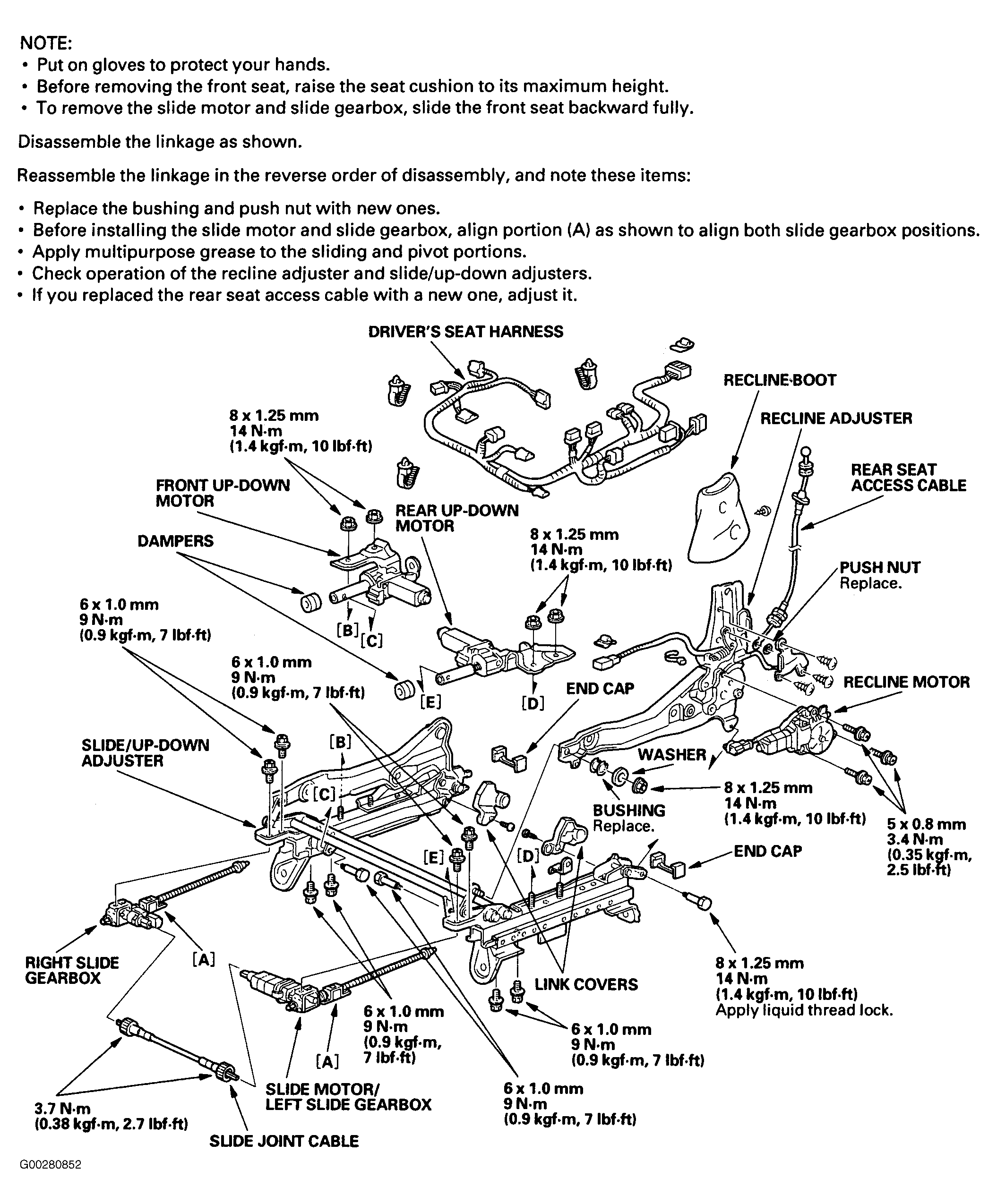

Fig 1: Disassembling & Assembling Driver Power Seat Linkage
G00280852Courtesy of AMERICAN HONDA MOTOR CO., INC.

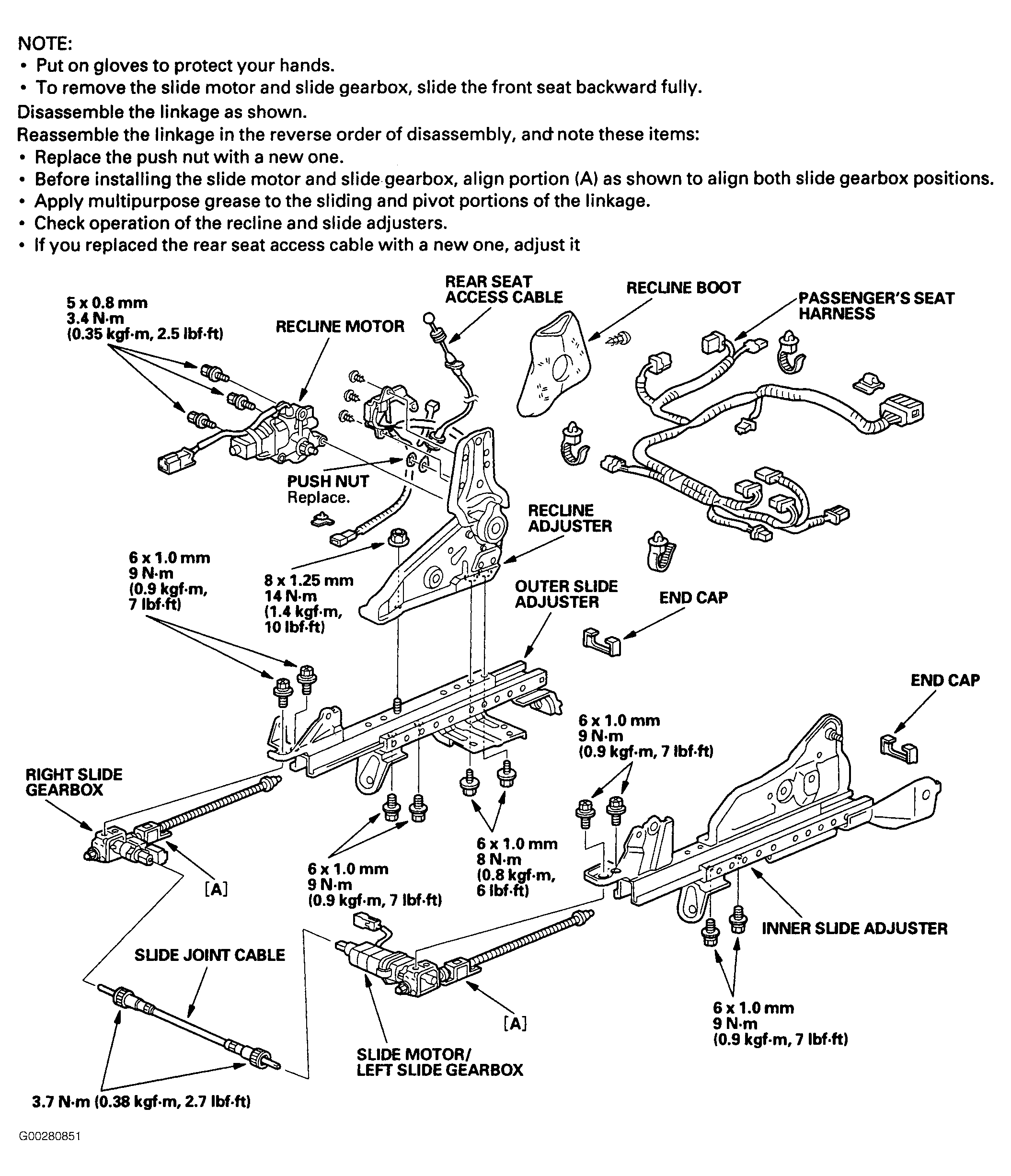

Fig 2: Disassembling & Assembling Passenger Power Seat Linkage
G00280851Courtesy of AMERICAN HONDA MOTOR CO., INC.
