Top Dead Center (TDC) Sensor

The TDC sensor detects the position of the No. 1 cylinder as a reference for sequential fuel injection to each cylinder.

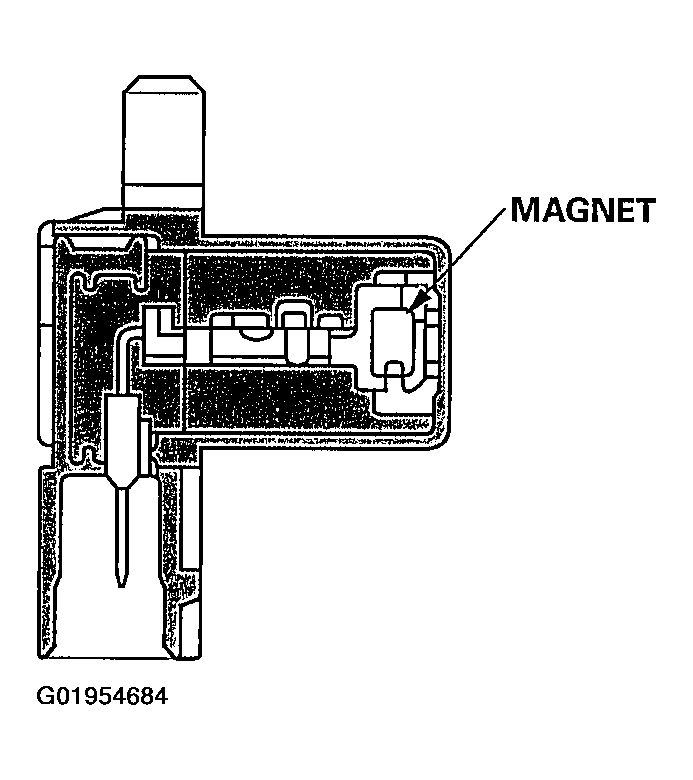

Fig 1: Identifying Top Dead Center Sensor

G01954684
