Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel & Emissions Systems
>>
System Descriptions
>>
PCM Inputs and Outputs at Connector C (22P)
PCM Inputs and Outputs at Connector C (22P)

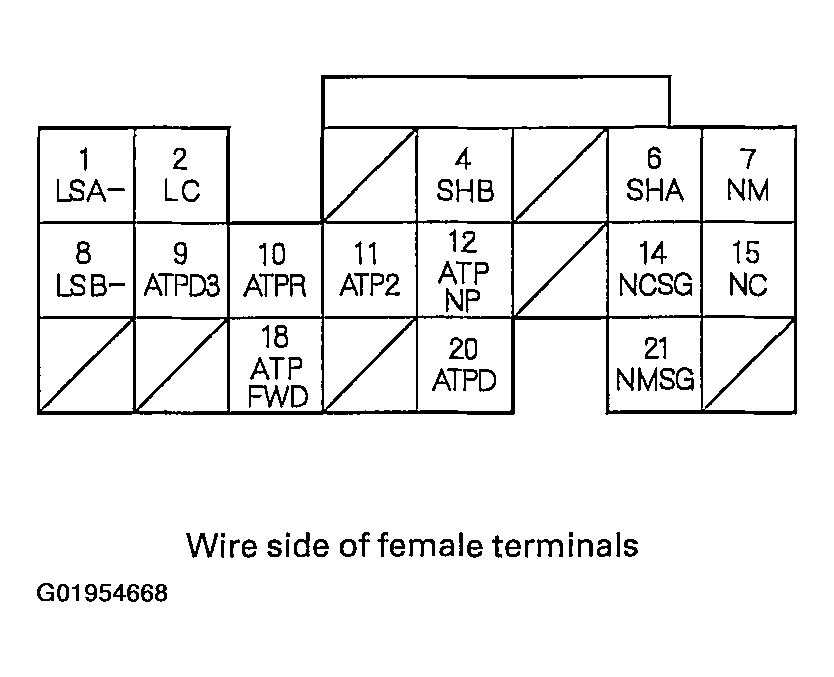

Fig 1: Identifying Connector C (22P) Terminals

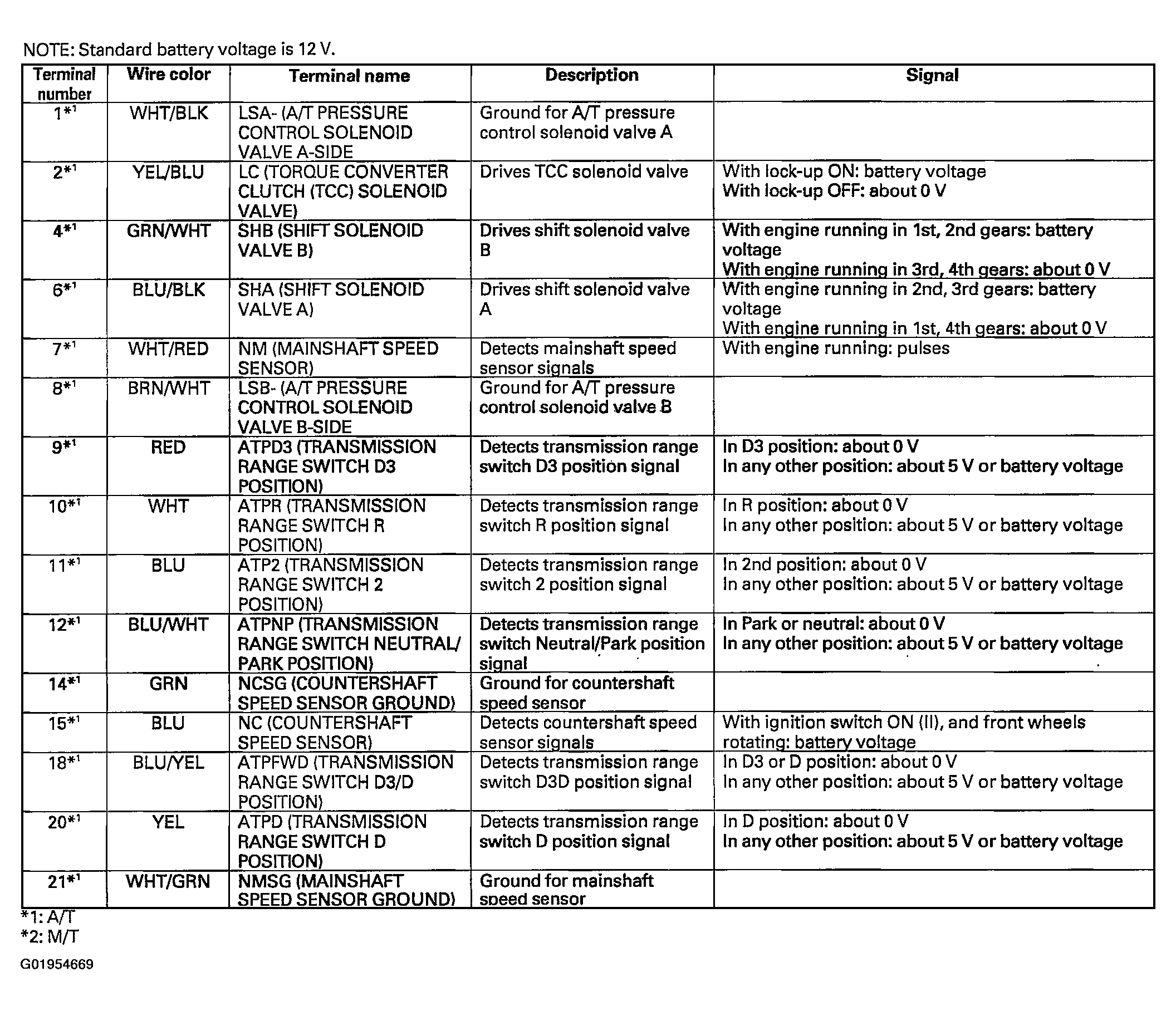

Fig 2: PCM Connector C (22P) Inputs & Outputs Pin Voltage Chart
