ABS Control Unit Inputs and Outputs for 31P Connector

Fig 1: Identifying ABS Control Unit 31P Connector Terminals
G01960925

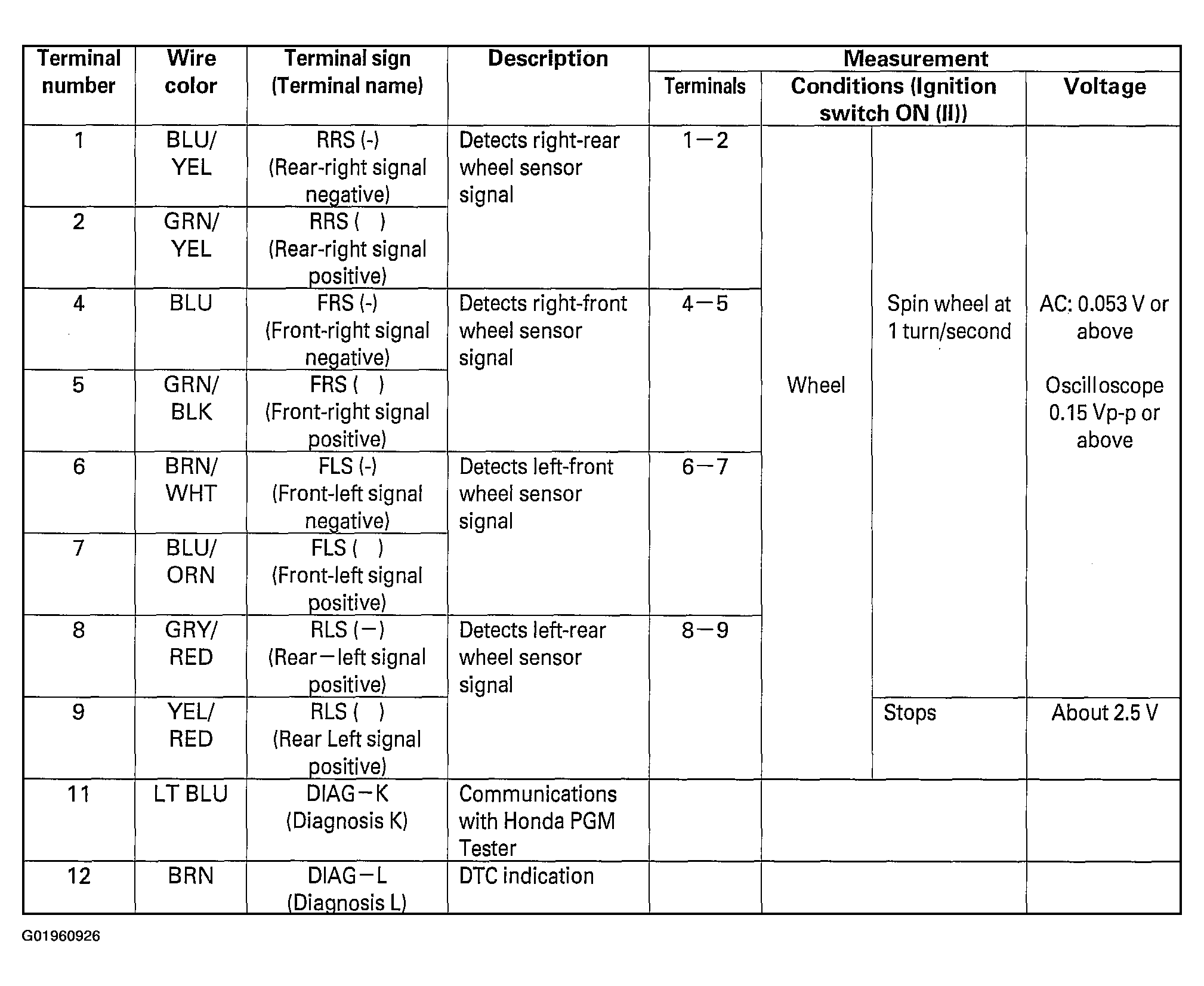

Fig 2: ABS Control Unit Pin Voltage Chart (1 Of 2)
G01960926

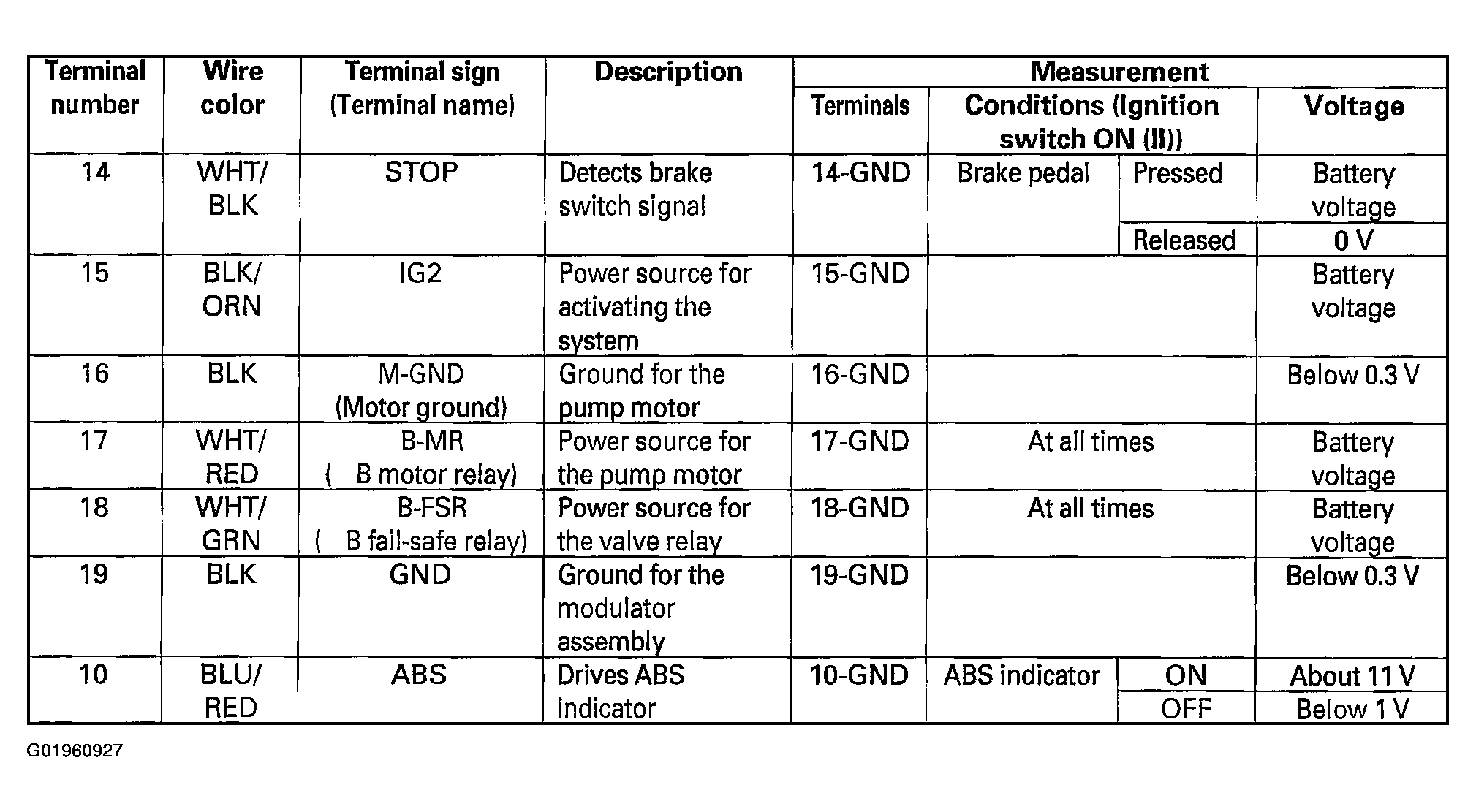

Fig 3: ABS Control Unit Pin Voltage Chart (2 Of 2)
G01960927
