DPMS Switch Connector End View

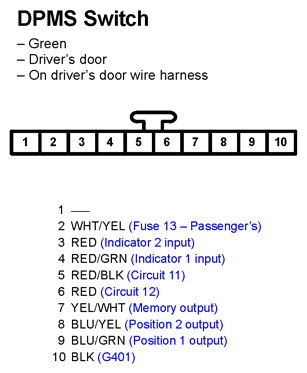

Fig 1: DPMS Switch Connector End View

G11247869

Courtesy of AMERICAN HONDA MOTOR CO., INC.
