Keyless Receiver Input Test

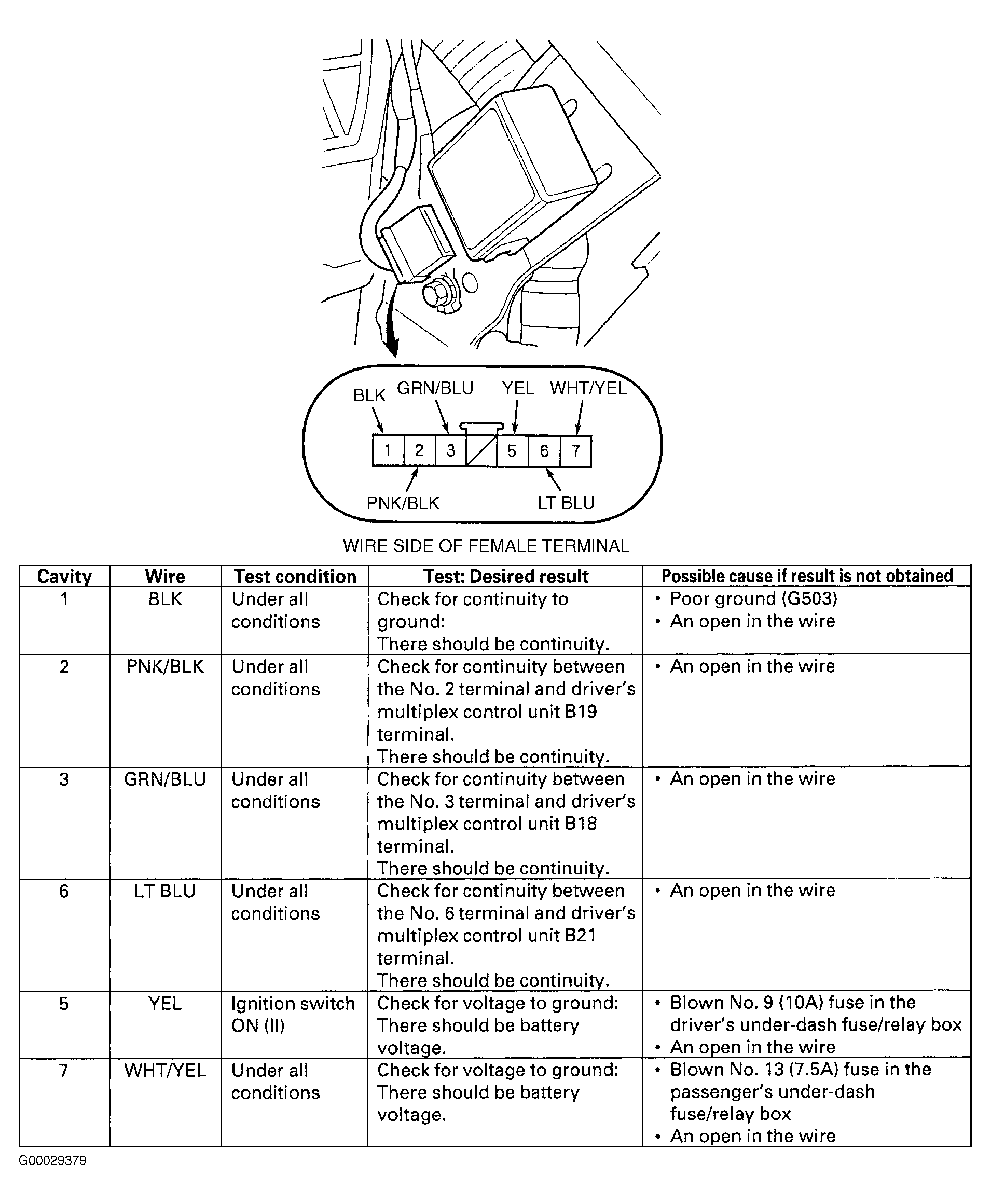

Remove glove box and glove box cover. Disconnect keyless receiver unit 7-pin connector. Check keyless receiver unit connector for loose, damaged or corroded terminals. If problem exists, repair connector as necessary. If problem does not exist, with keyless receiver unit 7-pin connector still disconnected, perform keyless receiver input tests. See Fig 1 . If any input is not as specified, repair indicated problem. If all inputs are as specified, replace keyless receiver unit.
