Symptom Troubleshooting Index (Type S M/T Model)

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

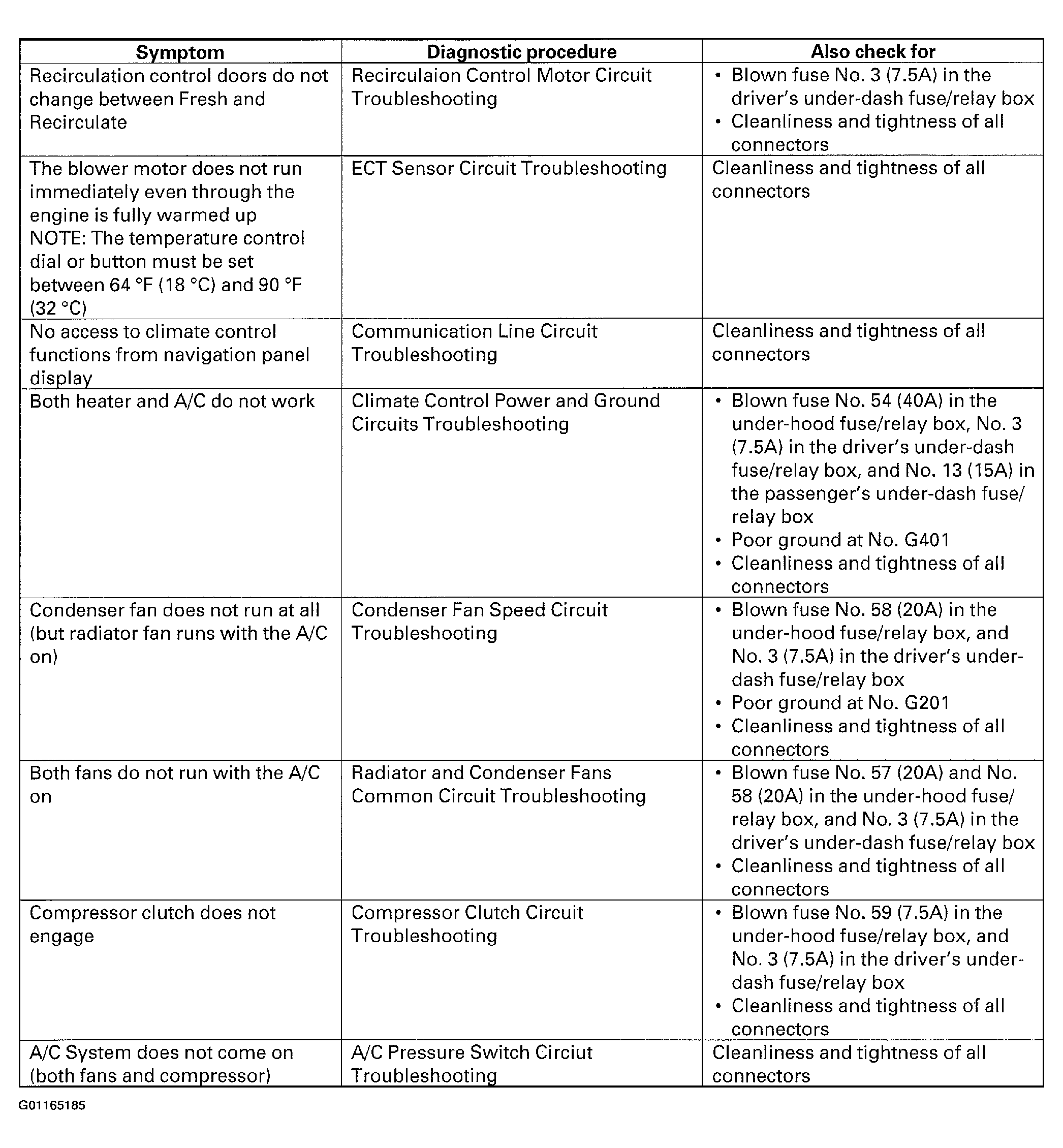

Fig 1: Symptom Troubleshooting Index (Type S M/T Model)
G01165185Courtesy of AMERICAN HONDA MOTOR CO., INC.
