Gauge Assembly Connector End View
Gauge Assembly Connector End View

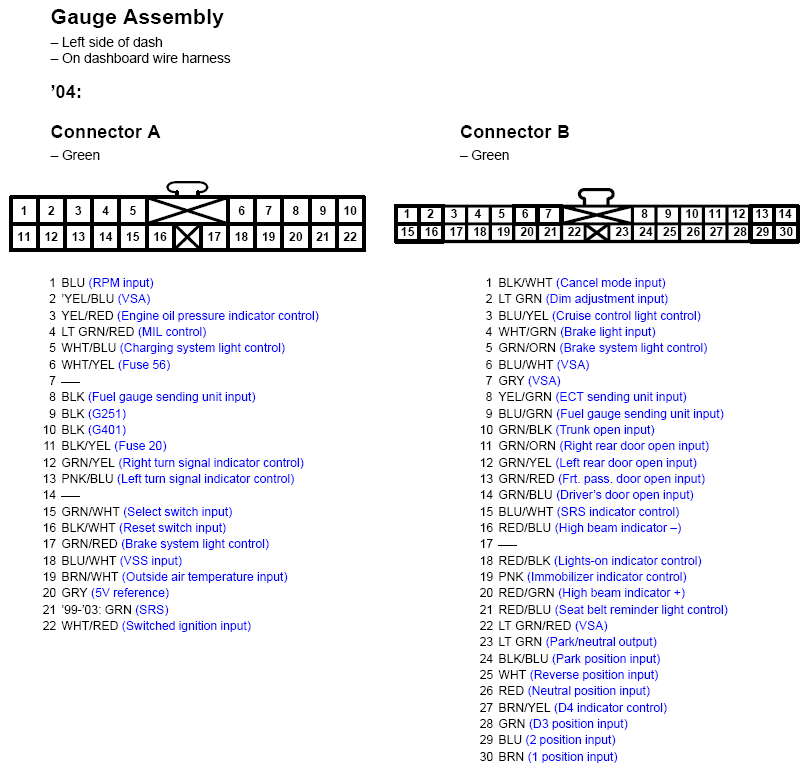

Fig 1: Gauge Assembly Connector End View (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

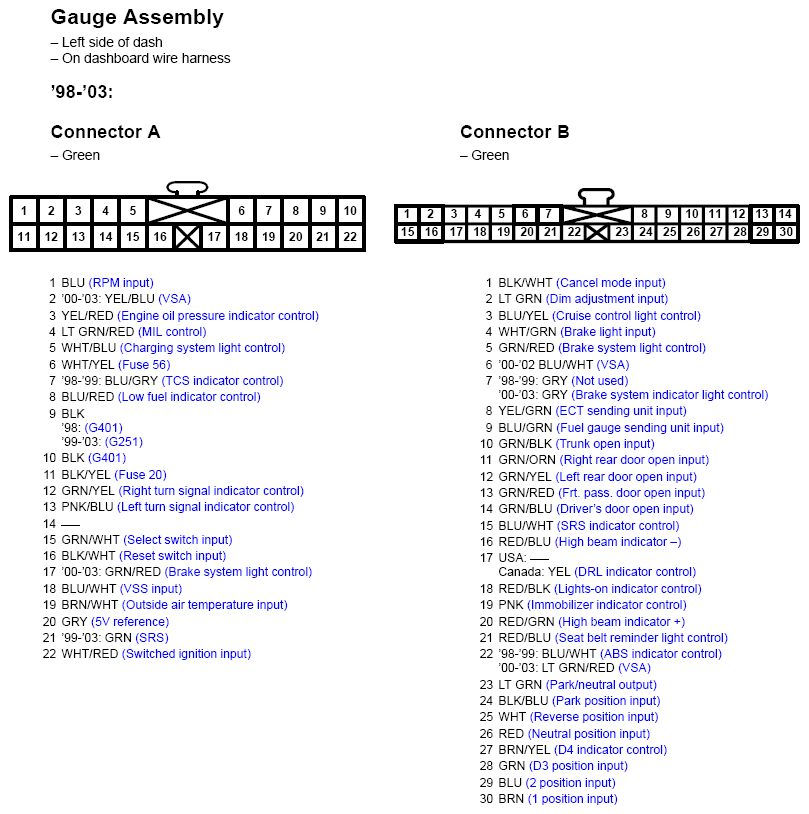

Fig 2: Gauge Assembly Connector End View (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

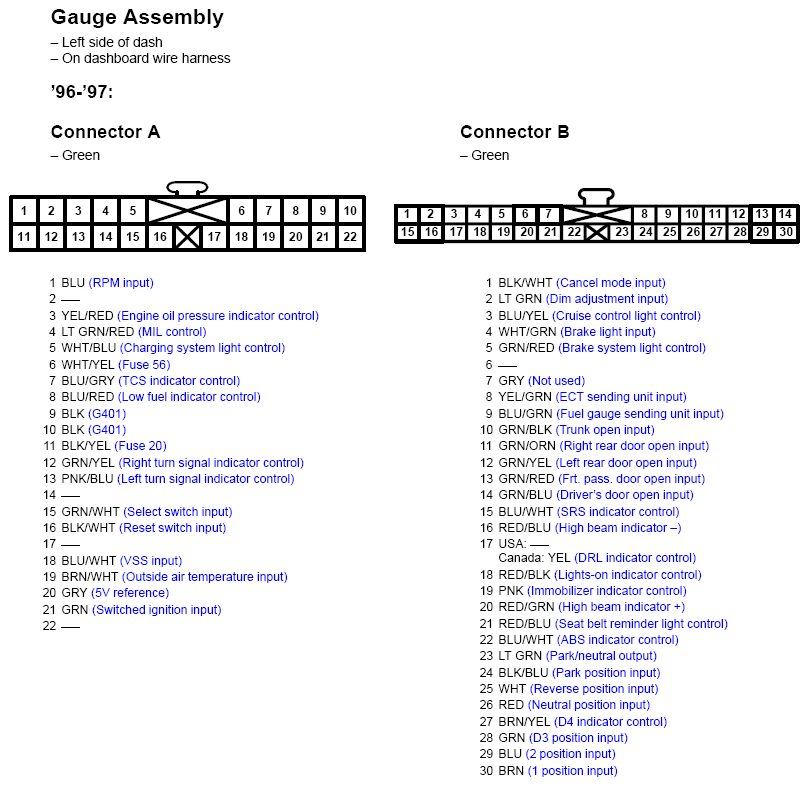

Fig 3: Gauge Assembly Connector End View (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Gauge Assembly Connector End View (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
