Gauge Assembly Connector End View

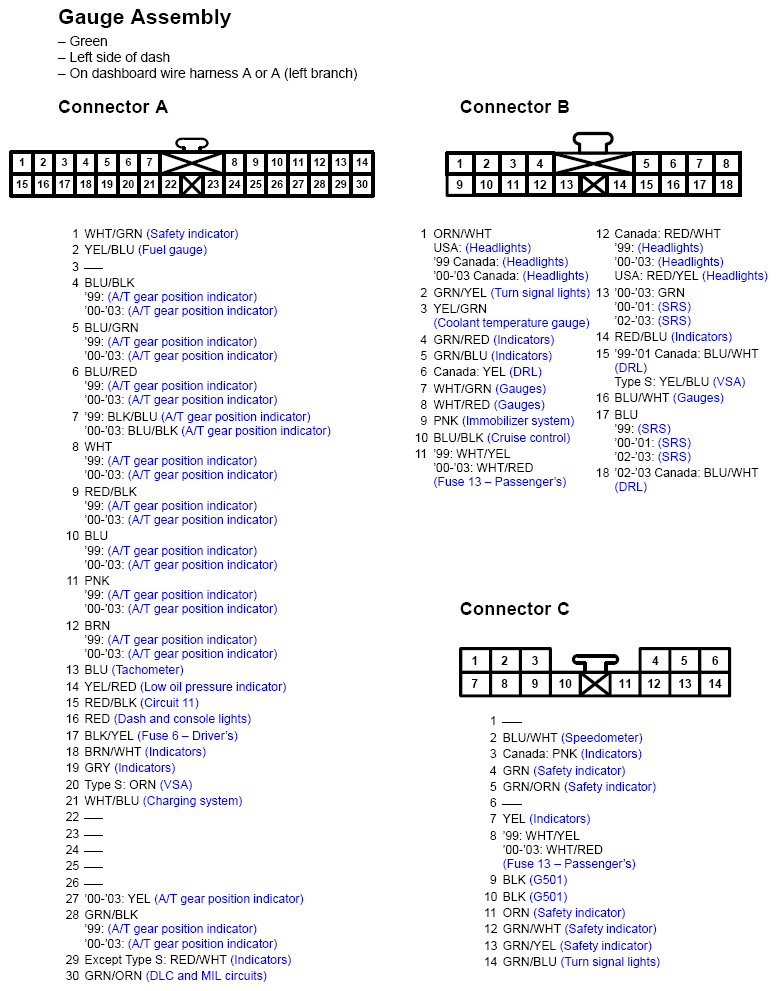

Fig 1: Gauge Assembly Connector End View

G11247454

Courtesy of AMERICAN HONDA MOTOR CO., INC.
