DTC P0108

The scan tool indicates Diagnostic Trouble Code (DTC) P0108: A high voltage (low vacuum) problem in the Manifold Absolute Pressure (MAP) sensor.

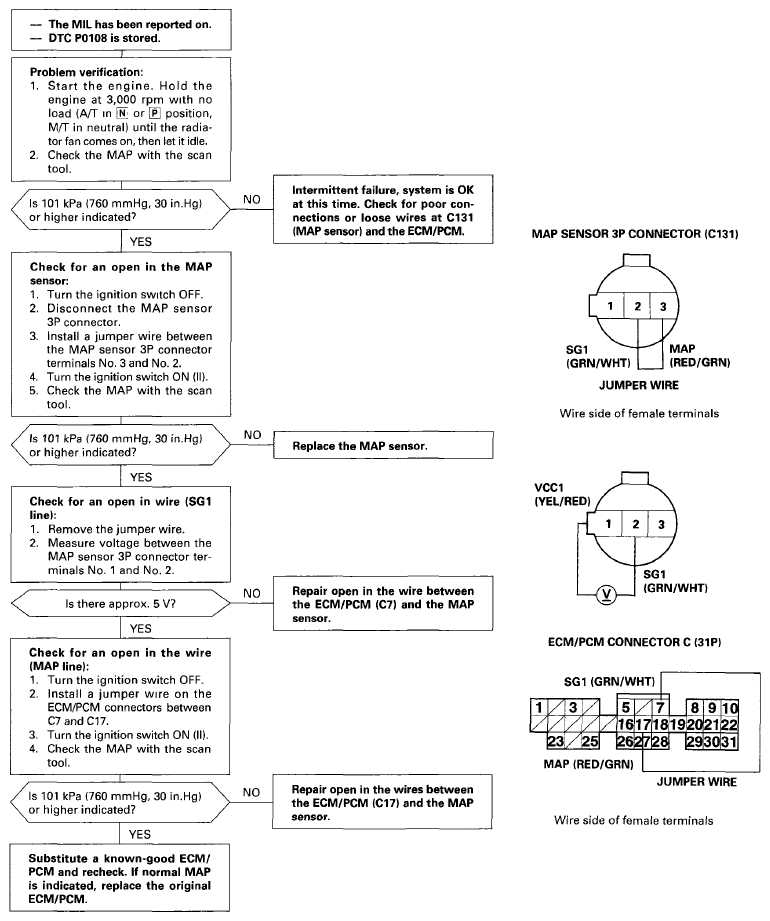

Fig 1: Diagnostic Trouble Code (P0108) - Flowchart
G06290305Courtesy of AMERICAN HONDA MOTOR CO., INC.
