DTC P0107

The scan tool indicates Diagnostic Trouble Code (DTC) P0107: A low input (high vacuum) problem in the Manifold Absolute Pressure (MAP) sensor.

The MAP sensor converts manifold absolute pressure into electrical signals and inputs the ECM/PCM.

Fig 1: Manifold Absolute Pressure Sensor Reference Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

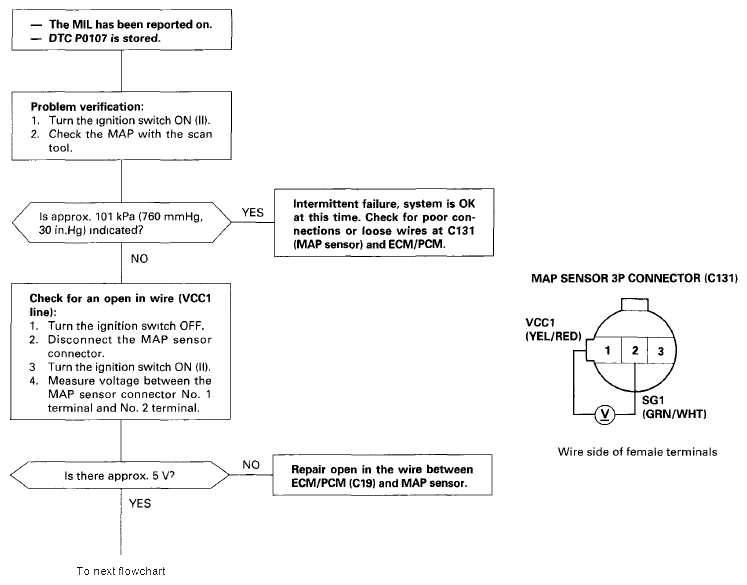

Fig 2: Diagnostic Trouble Code (P0107) - Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

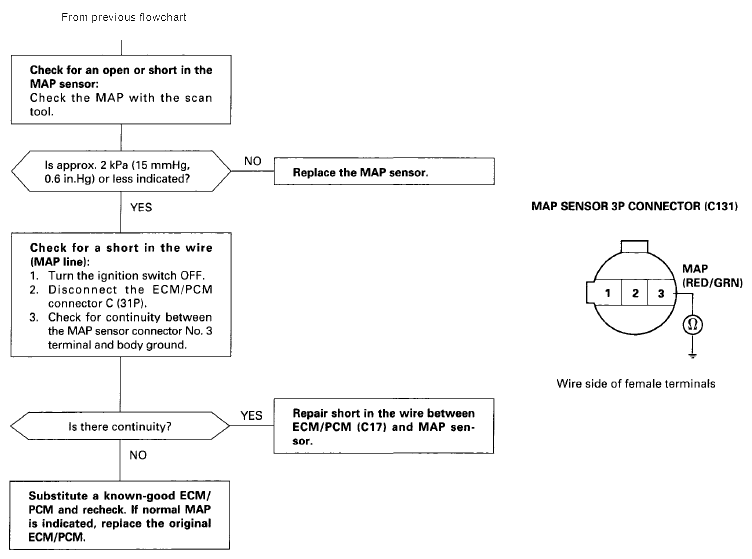

Fig 3: Diagnostic Trouble Code (P0107) - Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
