Intake Air Temperature (IAT) Sensor: P0112

The scan tool indicates Diagnostic Trouble Code (DTC) P0112: A low voltage (high temperature) problem in the Intake Air Temperature (IAT) sensor circuit.

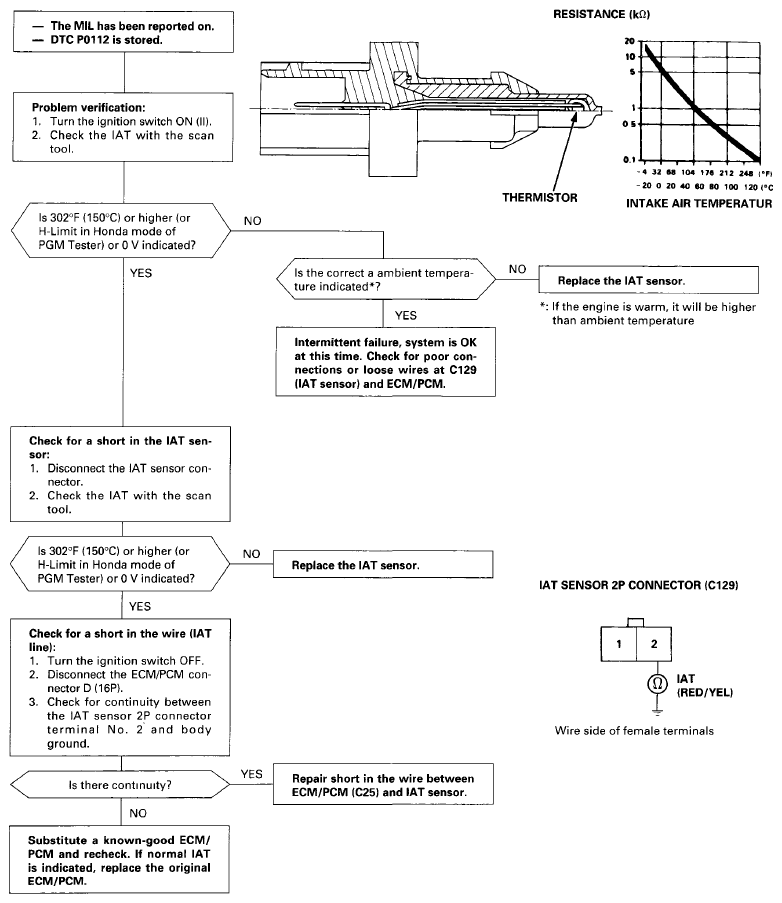

Fig 1: Diagnostic Trouble Code (P0112) - Flowchart
G06290306Courtesy of AMERICAN HONDA MOTOR CO., INC.
