Idle Air Control (IAC) Valve (A/T)
>>
1999-2000 Models
1999-2000 Models
Fig 1: Idle Air Control Valve (A/T) Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

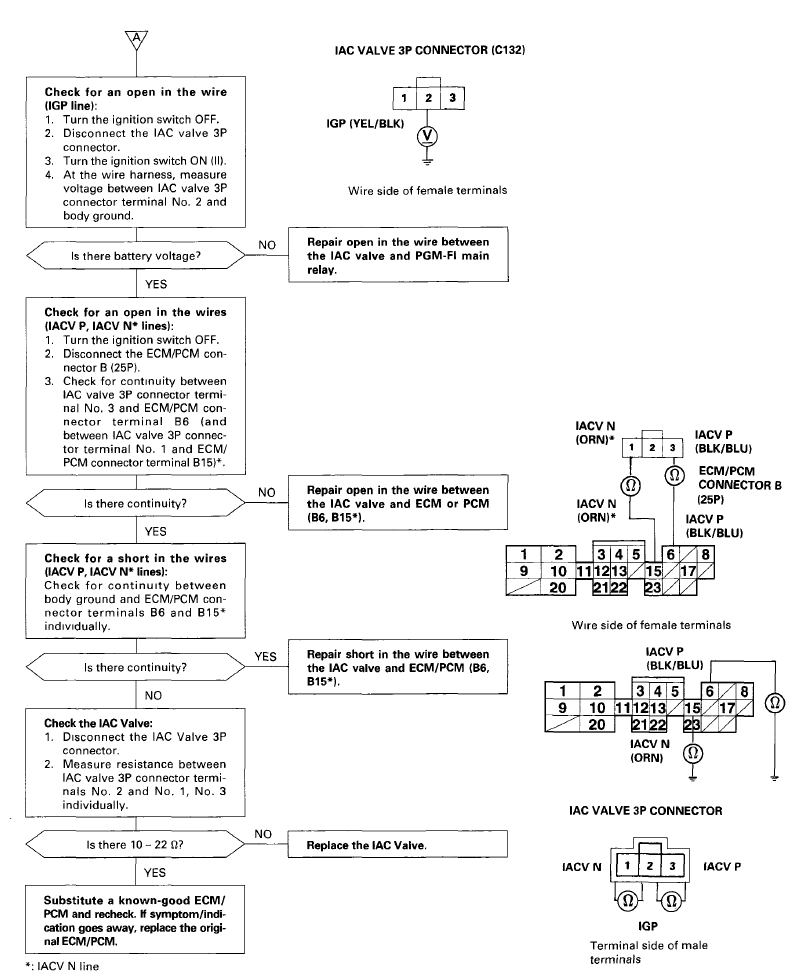

Fig 2: Idle Air Control Valve (A/T) Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
