Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Acura
>>
2000
>>
1.6EL RS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control System
>>
Three Way Catalytic Converter (TWC)
>>
Troubleshooting Flowchart
Troubleshooting Flowchart

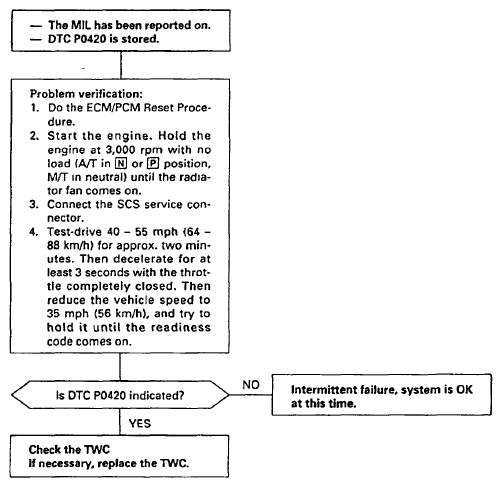

Fig 1: Troubleshooting Flow Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
