Function Test: Notes

CAUTION: Be careful not to damage the mirror switch or the dashboard driver's lower cover when prying the switch out.
  1. Pry the switch out of the driver's dashboard lower cover.
  2. Disconnect the 10P and 2P connectors from the switch.

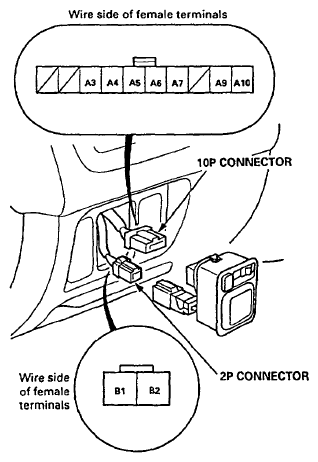

    Fig 1: Identifying Switch 10P And 2P Connectors
    G06289729Courtesy of AMERICAN HONDA MOTOR CO., INC.
