System Connectors (Engine Compartment)

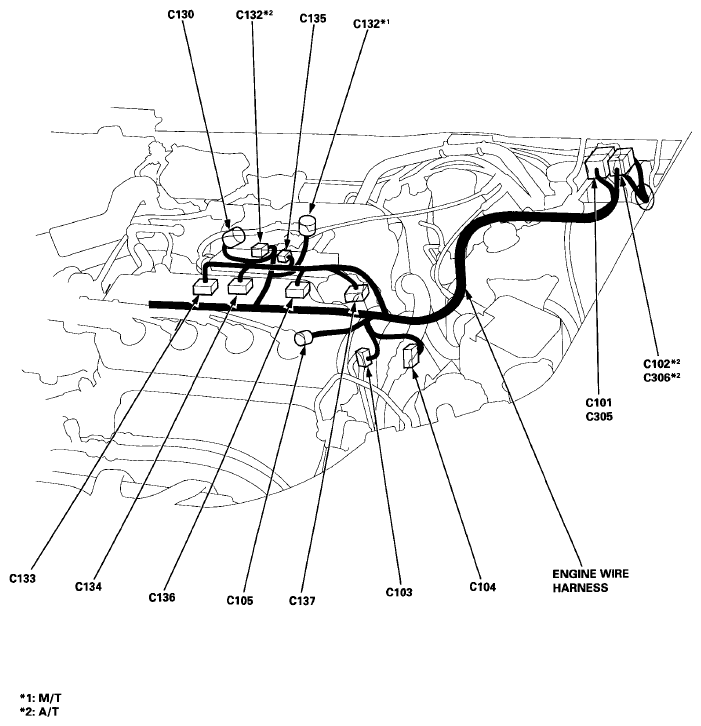

Fig 1: Identifying System Connectors - Engine Compartment (1 Of 2)
G06287772

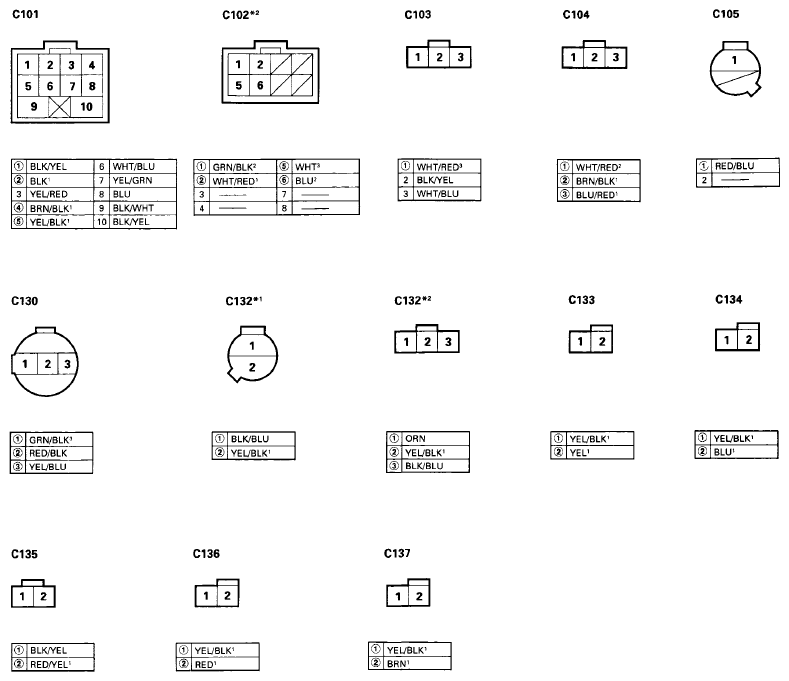

Fig 2: Identifying System Connectors - Engine Compartment (2 Of 2)
G06287773
NOTE:
  • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).

    ◦: Related to Fuel and Emissions System.

    • Connector with male terminals (double outline): View from terminal side
    • Connector with female terminals (single outline): View from wire side

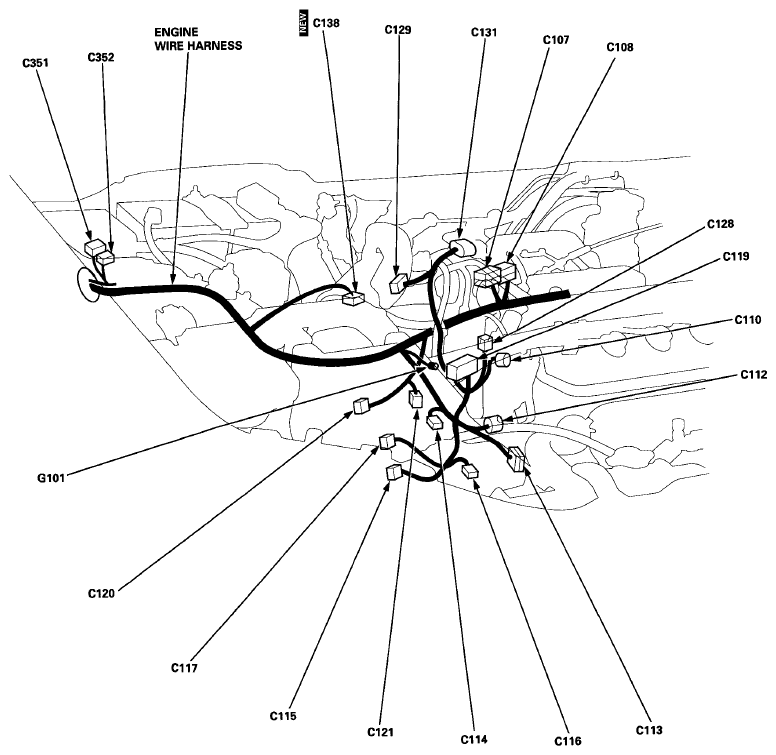

      Fig 3: Identifying System Connectors - Engine Compartment (1 Of 2)
      G06287774

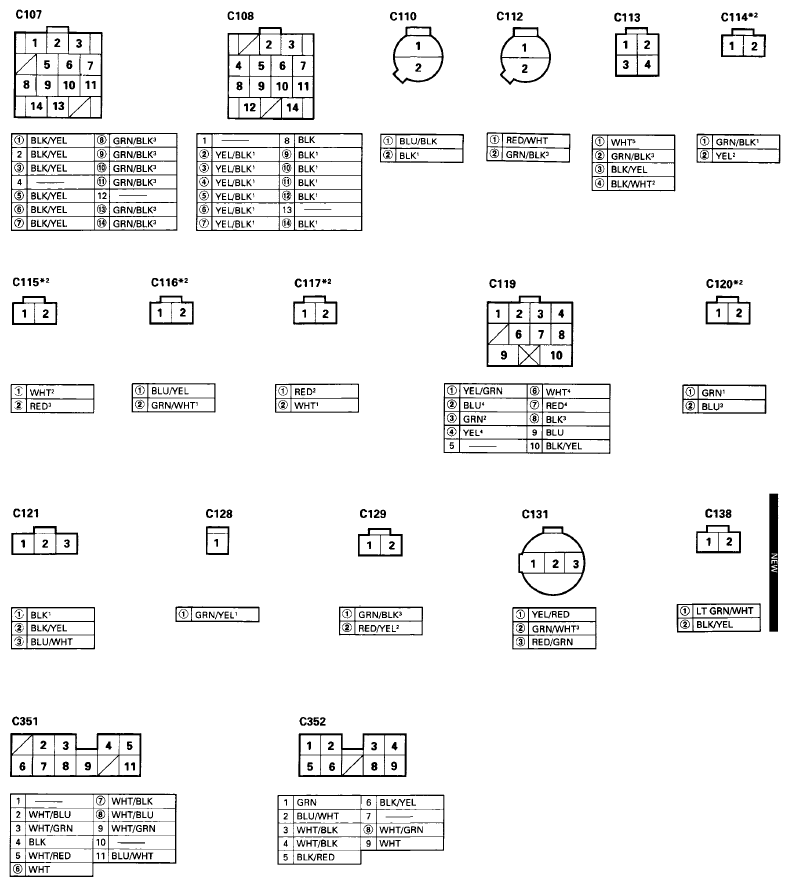

      Fig 4: Identifying System Connectors - Engine Compartment (2 Of 2)
      G06287775
NOTE:
  • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).

    ◦: Related to Fuel and Emissions System.

    • Connector with male terminals (double outline): View from terminal side
    • Connector with female terminals (single outline): View from wire side
