Home
>>
Acura
>>
1997
>>
1.6EL TS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
PGM-FI System
>>
Troubleshooting Flow Charts
>>
Engine Coolant Temperature (ECT) Sensor
>>
DTC P0116
>>
Troubleshooting Flowchart
Troubleshooting Flowchart

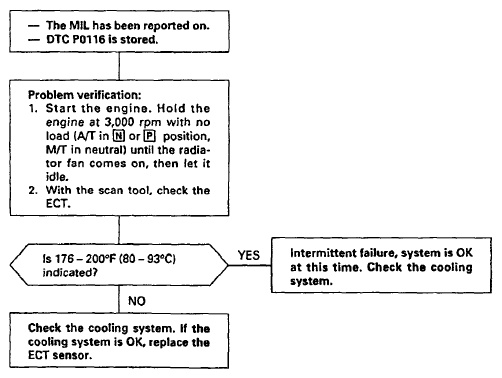

Fig 1: Diagnostic Trouble Code (P0116) - Flow Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
