Home >> Acura >> 1996 >> 3.5RL >> Repair and Diagnosis >> Brakes >> Traction Control >> Traction Control System >> Circuit Tests >> DTC 6-1: A/T Shift Position Signal - A/T-Shift

DTC 6-1: A/T Shift Position Signal - A/T-Shift

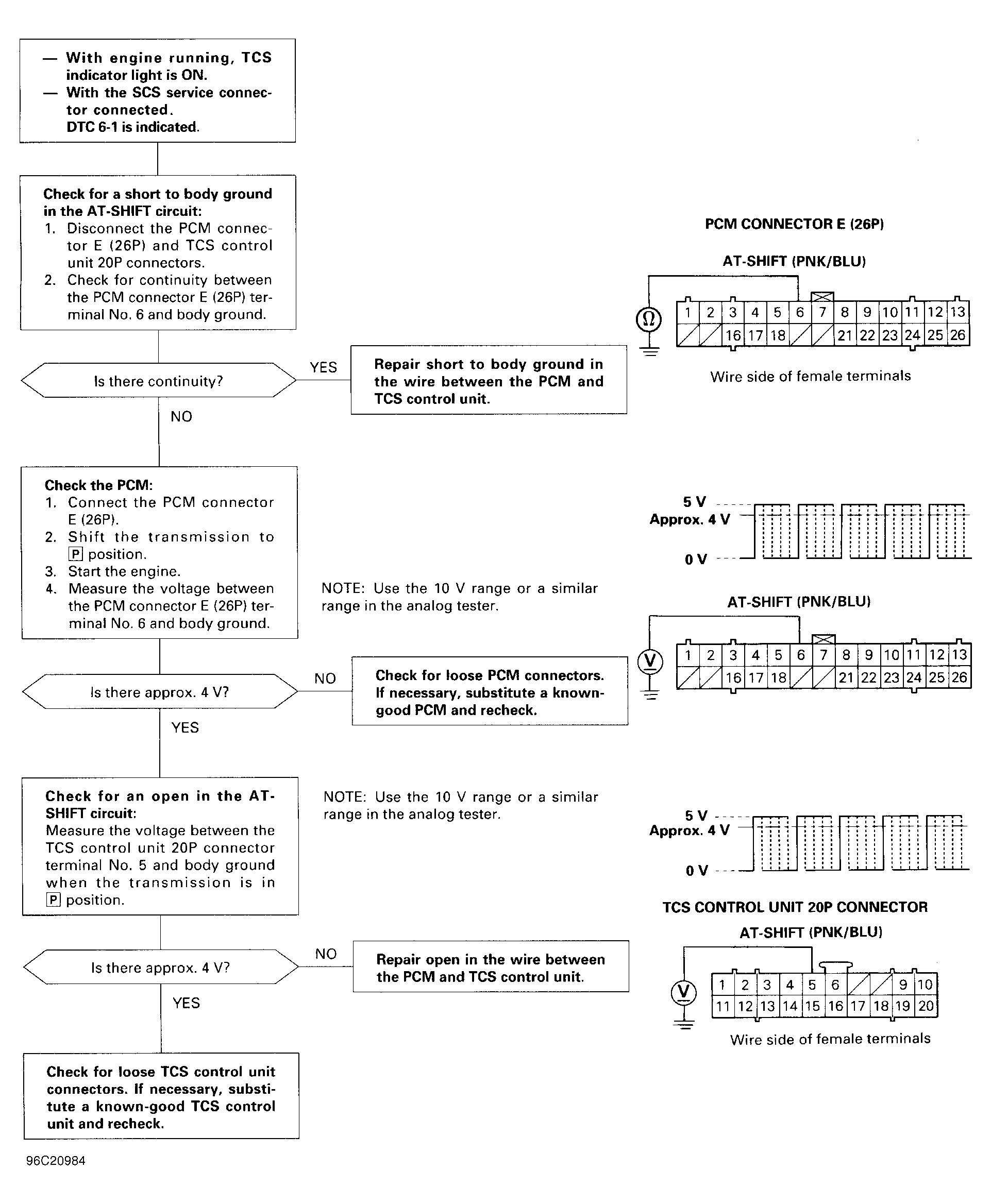

Fig 1: DTC 6-1: A/T Shift Position Signal - A/T-Shift

G96C20984

Courtesy of AMERICAN HONDA MOTOR CO., INC.
