Home >> Acura >> 1996 >> 3.2TL >> Repair and Diagnosis >> Brakes >> Traction Control >> Traction Control System >> Circuit Tests >> DTC 5-1: Fail-Safe Relay

DTC 5-1: Fail-Safe Relay

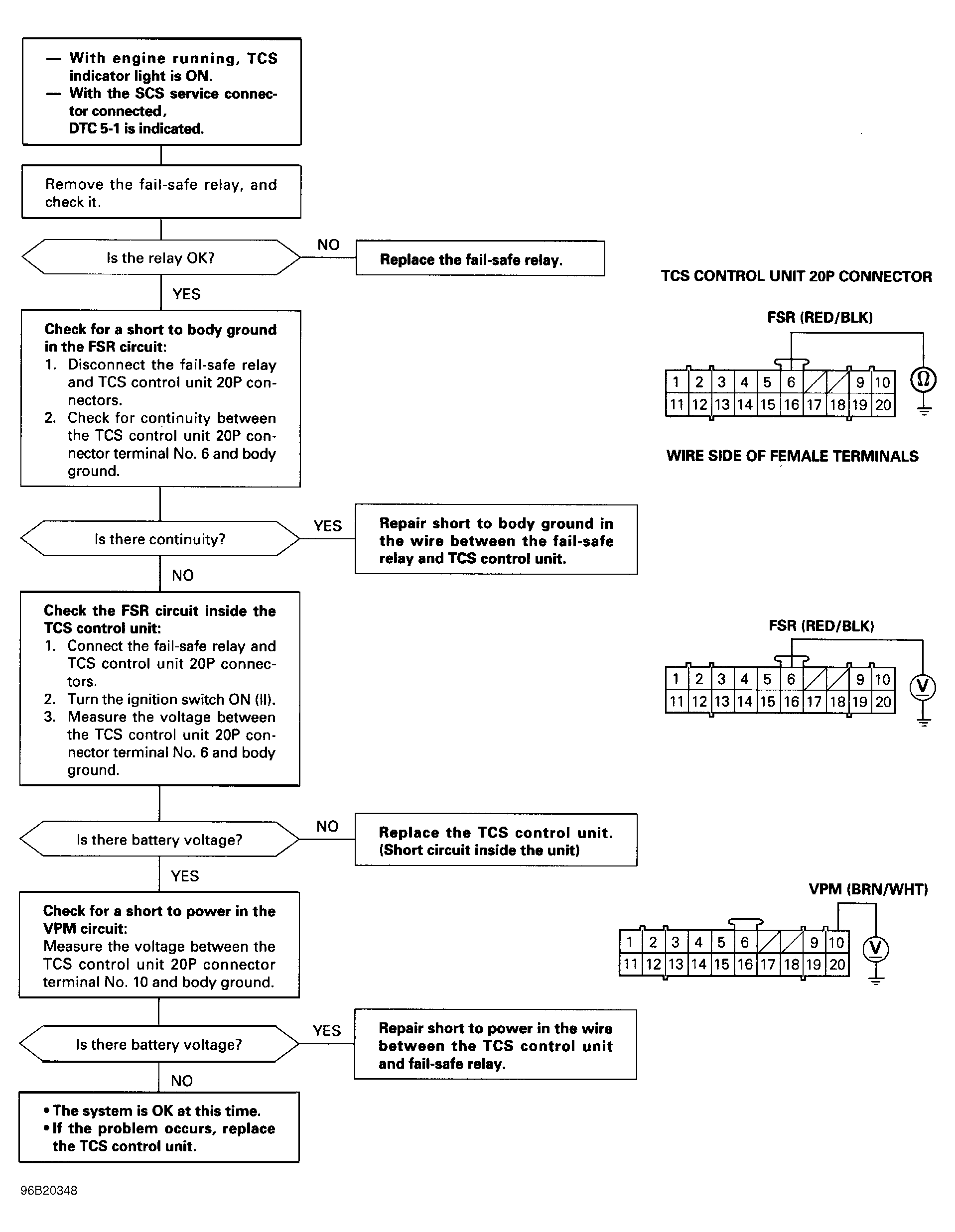

Fig 1: DTC 5-1: Fail-Safe Relay

G96B20348

Courtesy of AMERICAN HONDA MOTOR CO., INC.
