DTC 3-6: Throttle Position Sensor Signal - TPS

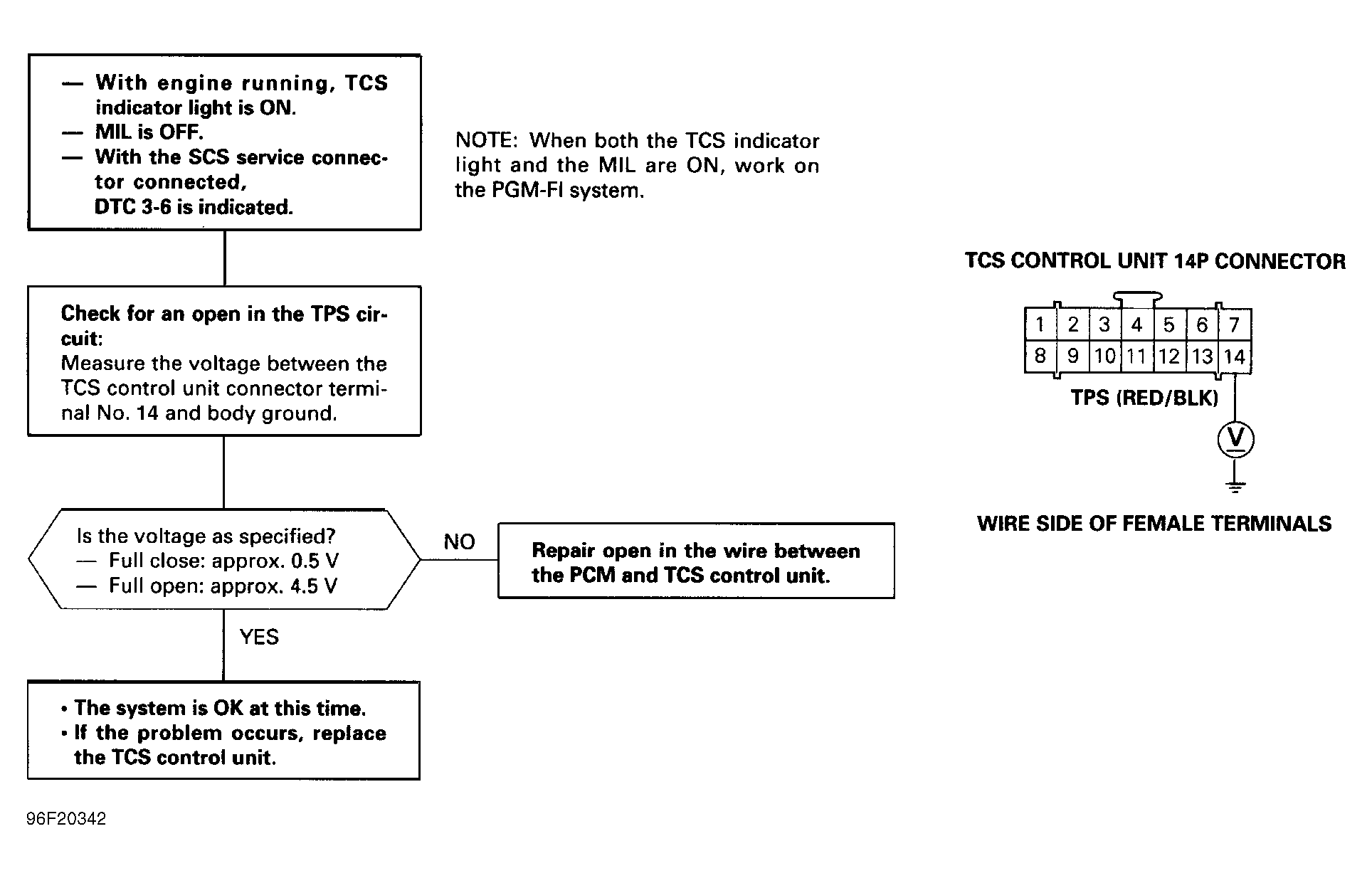

Fig 1: DTC 3-6: Throttle Position Sensor Signal - TPS

G96F20342

Courtesy of AMERICAN HONDA MOTOR CO., INC.
