DTC 3-7 - TCS Control Valve Angle Sensor

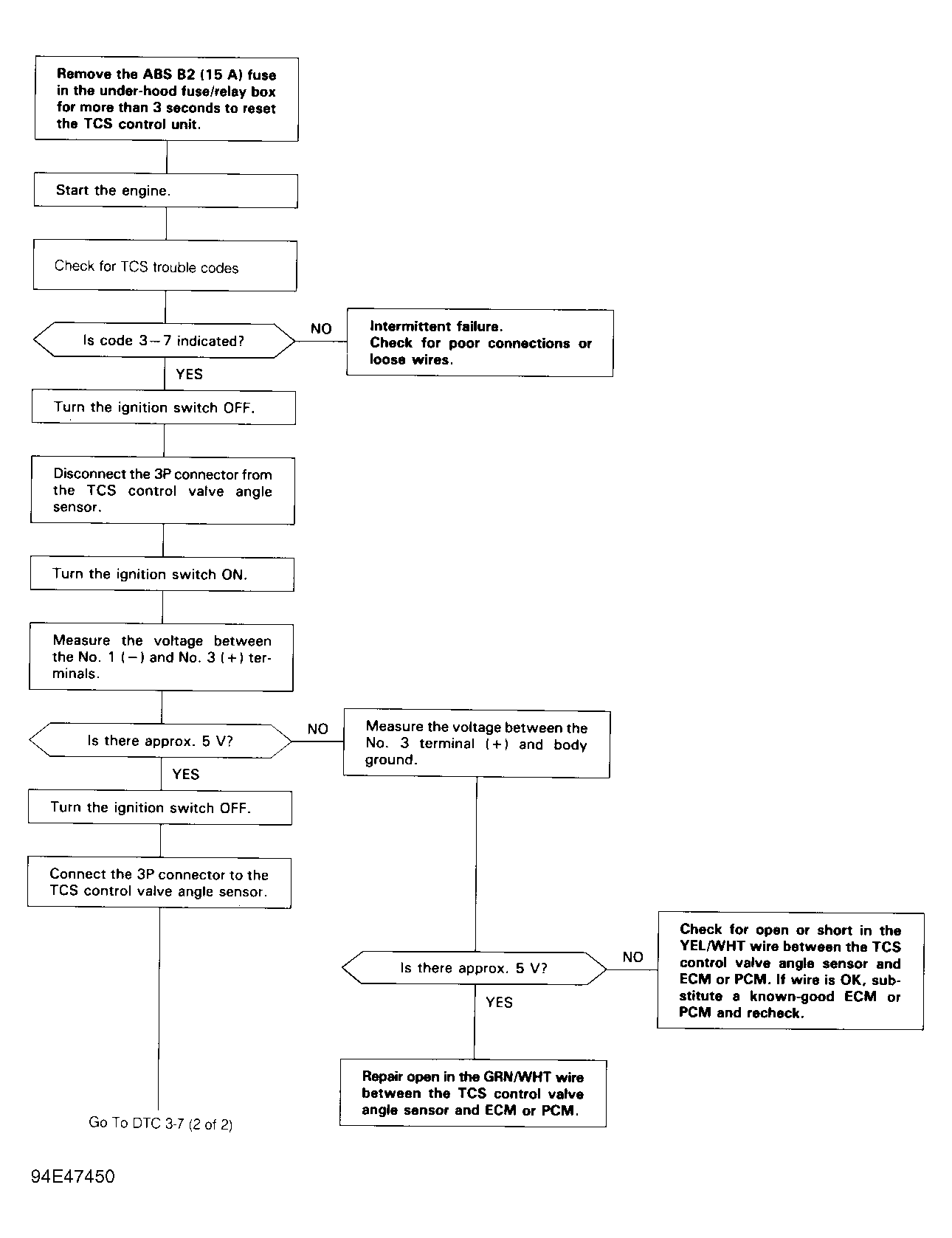

Fig 1: DTC 3-7 - TCS Control Valve Angle Sensor (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

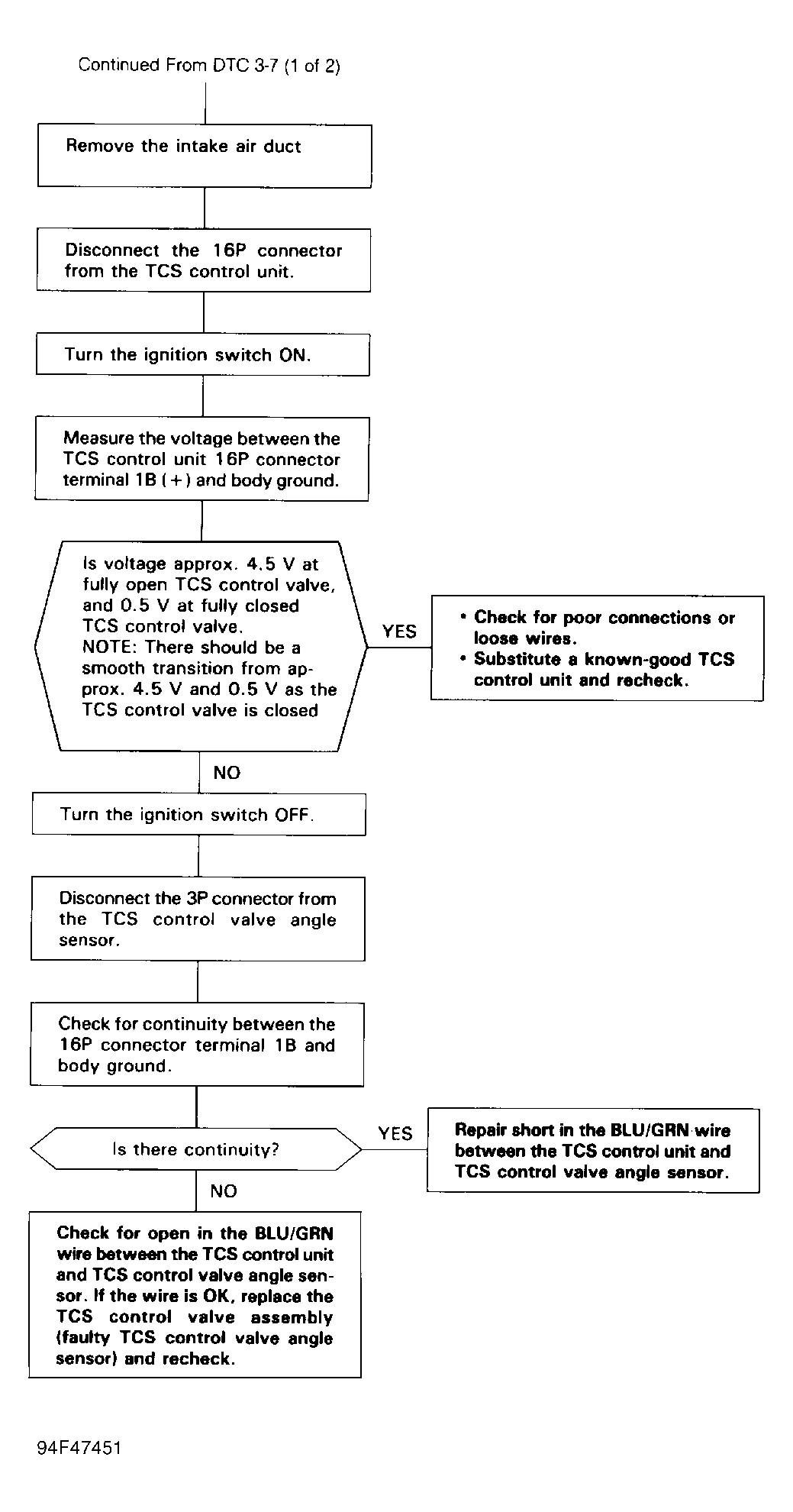

Fig 2: DTC 3-7 - TCS Control Valve Angle Sensor (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
