Control Unit Input Test
- Cruise control unit is located near right kick panel. Turn ignition off. Remove glove box. Unplug cruise control unit 14-pin connector.

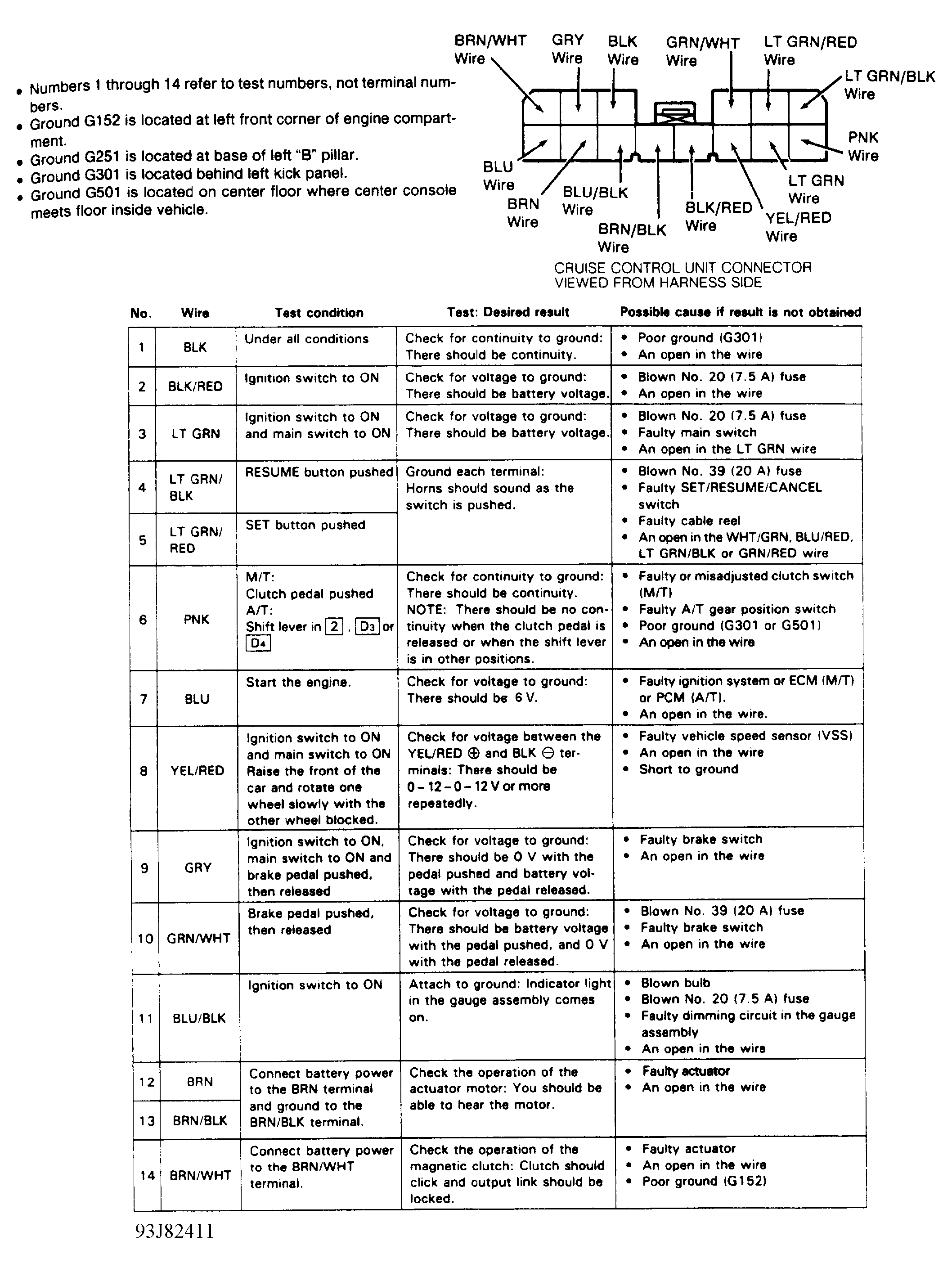

- Using a DVOM, perform cruise control unit input tests in Fig 1 . If all input test results are okay, inspect cruise control unit connector for damage and proper fit. If connector is okay but cruise control still malfunctions, replace cruise control unit.
