All Systems

For testing procedures, see Fig 1 .

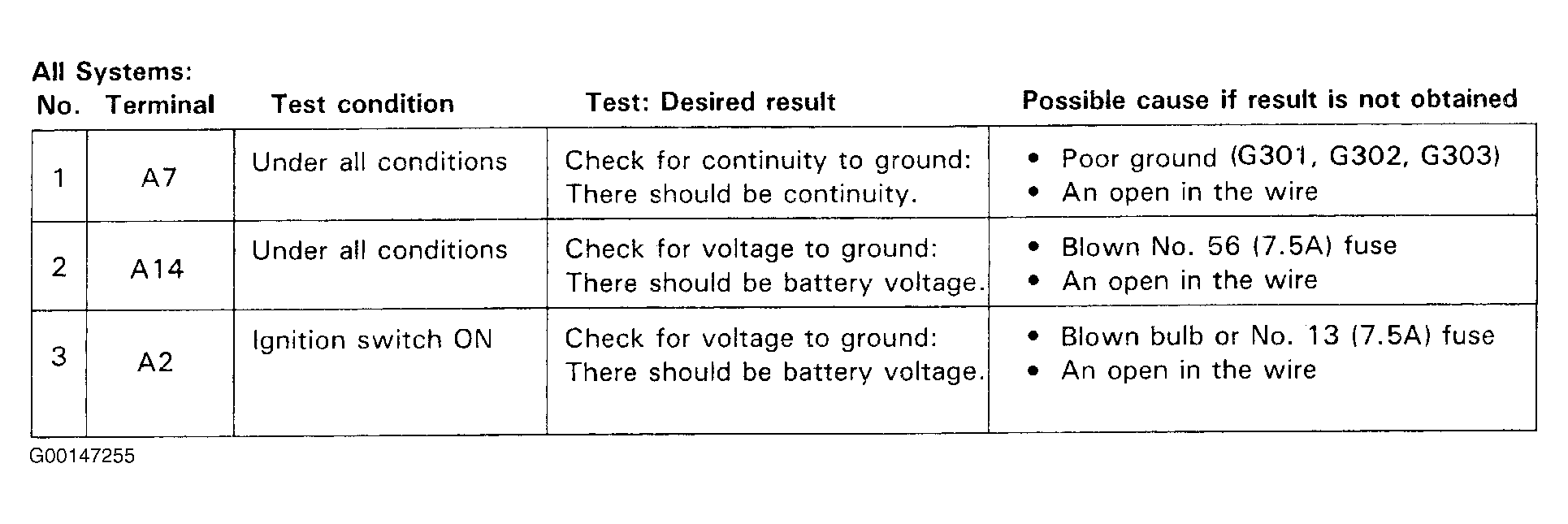

Fig 1: All Systems Input Test

G00147255

Courtesy of AMERICAN HONDA MOTOR CO., INC.
