Switch Test

For testing procedures, see Fig 1 .

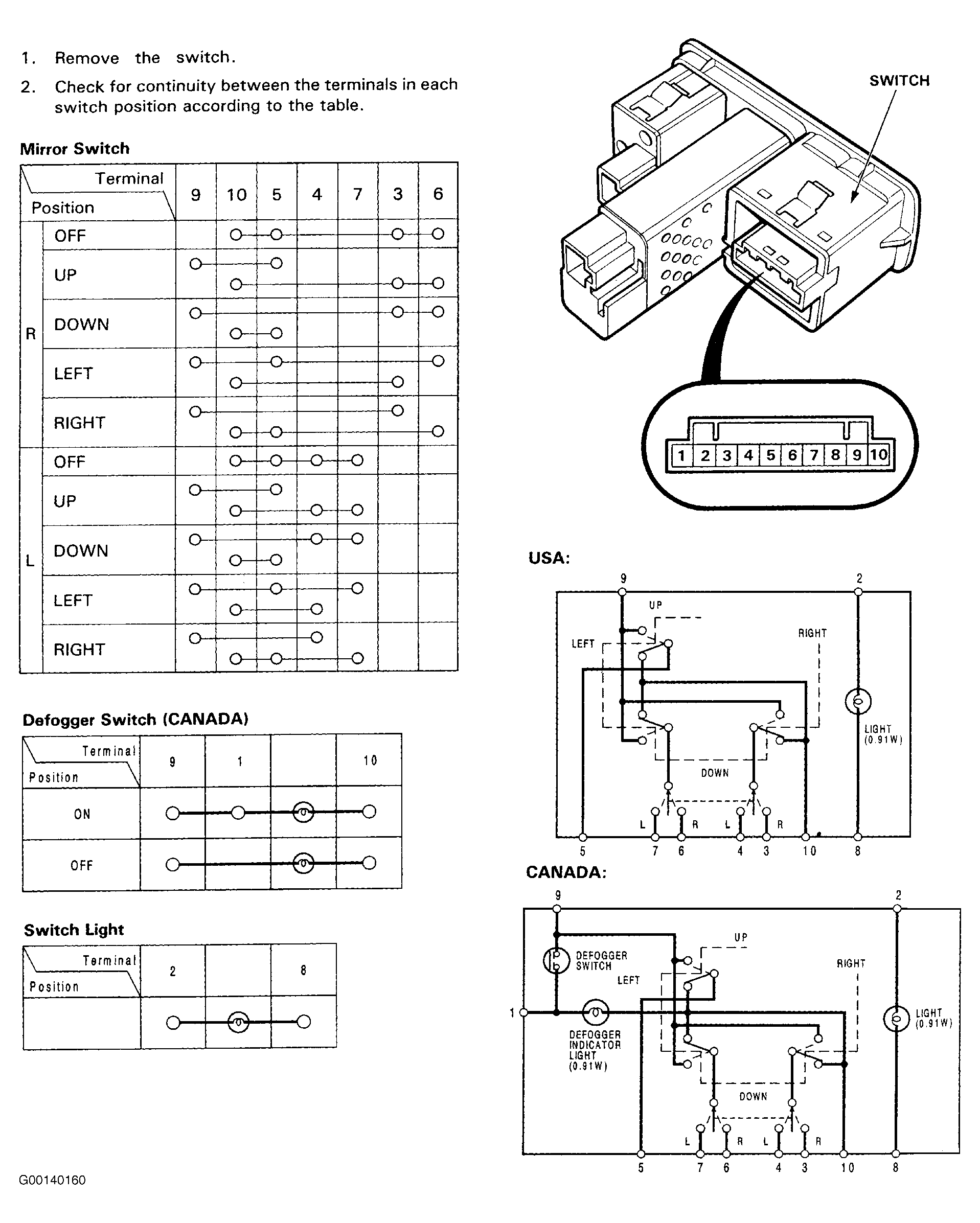

Fig 1: Switch Test

G00140160

Courtesy of AMERICAN HONDA MOTOR CO., INC.
