Air Conditioning System Performance Check

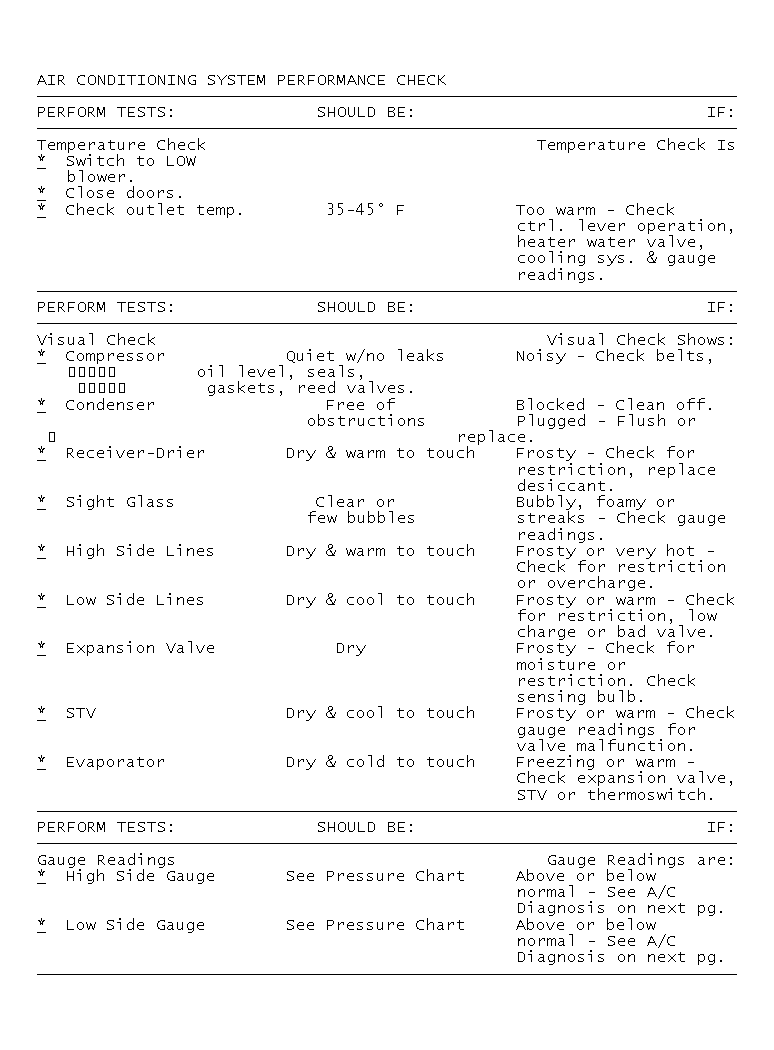

Fig 1: Air Conditioning System Performance Check

GB0043644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
