RECIRCULATION Control Motor Test

  1. Connect battery voltage to terminal No. 3 on recirculation control motor. Ground terminal No. 2. Using jumper wire, connect terminals No. 1 and 2. With FRESH/RECIRC door in RECIRC position, motor should turn 1/2 turn and stop.
  2. Using jumper wire, connect terminals No. 2 and 4. With FRESH/RECIRC door in FRESH position, motor should turn 1/2 turn and stop. If motor operation is not as specified, replace recirculation control motor. See Fig 1 .

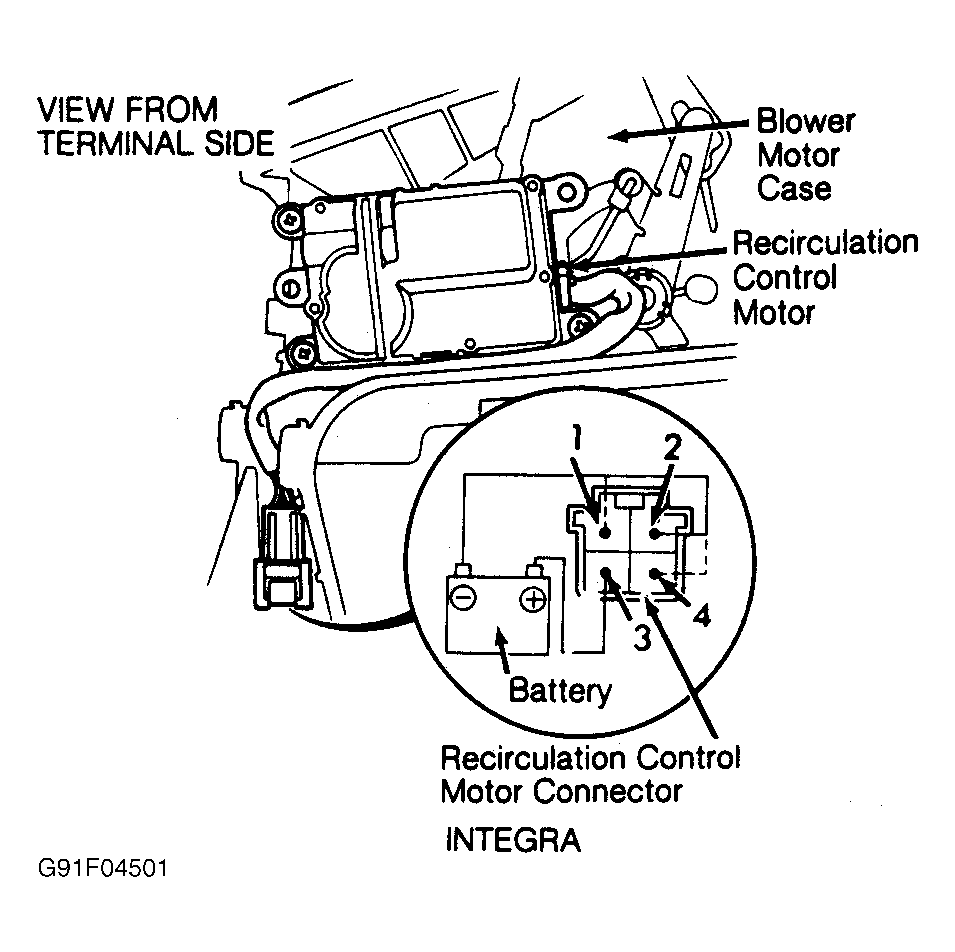

Fig 1: Locating Recirculation Control Motor Connector Terminals
G91H04501Courtesy of AMERICAN HONDA MOTOR CO., INC.
