Main Switch Test: Integra

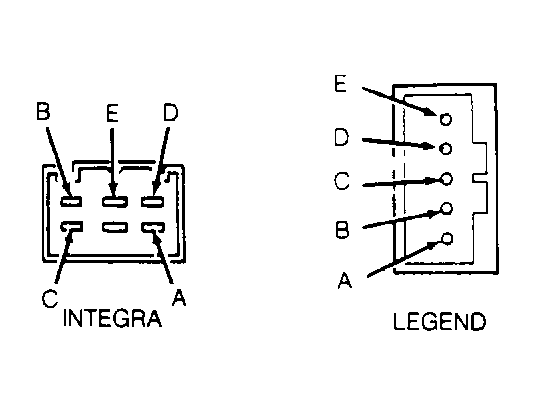

Remove switch from instrument panel. With switch off, continuity should be present between terminals "B" and "C", and terminals "D" and "E". With switch on, continuity should be present between terminals "A", "B" and "C", and terminals "D" and "E". See Figure .
