Set/Resume Switch: Notes

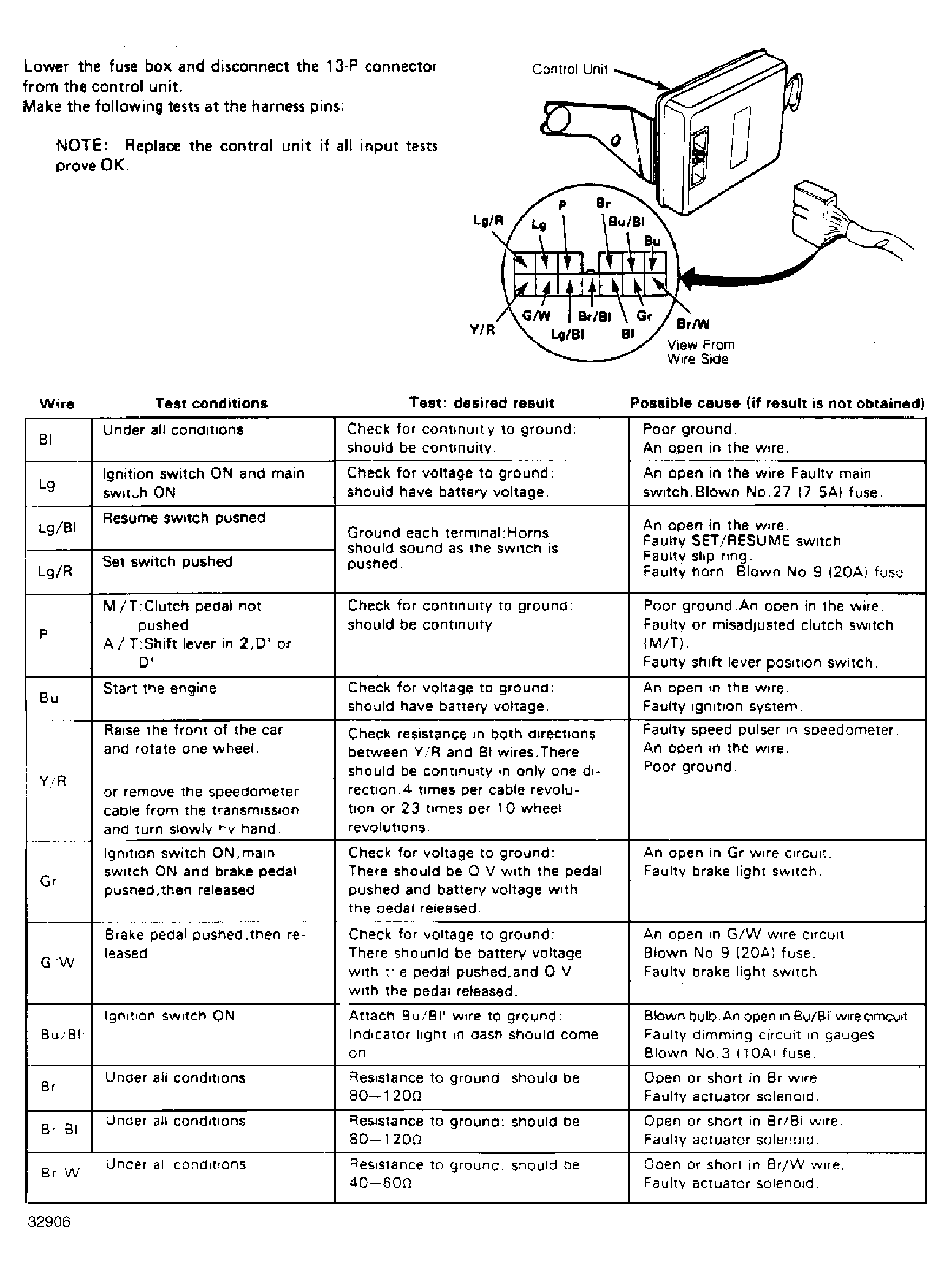

Fig 1: Control Unit Input Test

G32906

Courtesy of AMERICAN HONDA MOTOR CO., INC.
