NOTE:
Manufacturer had omitted a step in Code 14, Flowchart (1 of 3). See Fig 2
. For revised flowchart, see Fig 1
or refer to Acura Technical Service Bulletin number 86-005
.

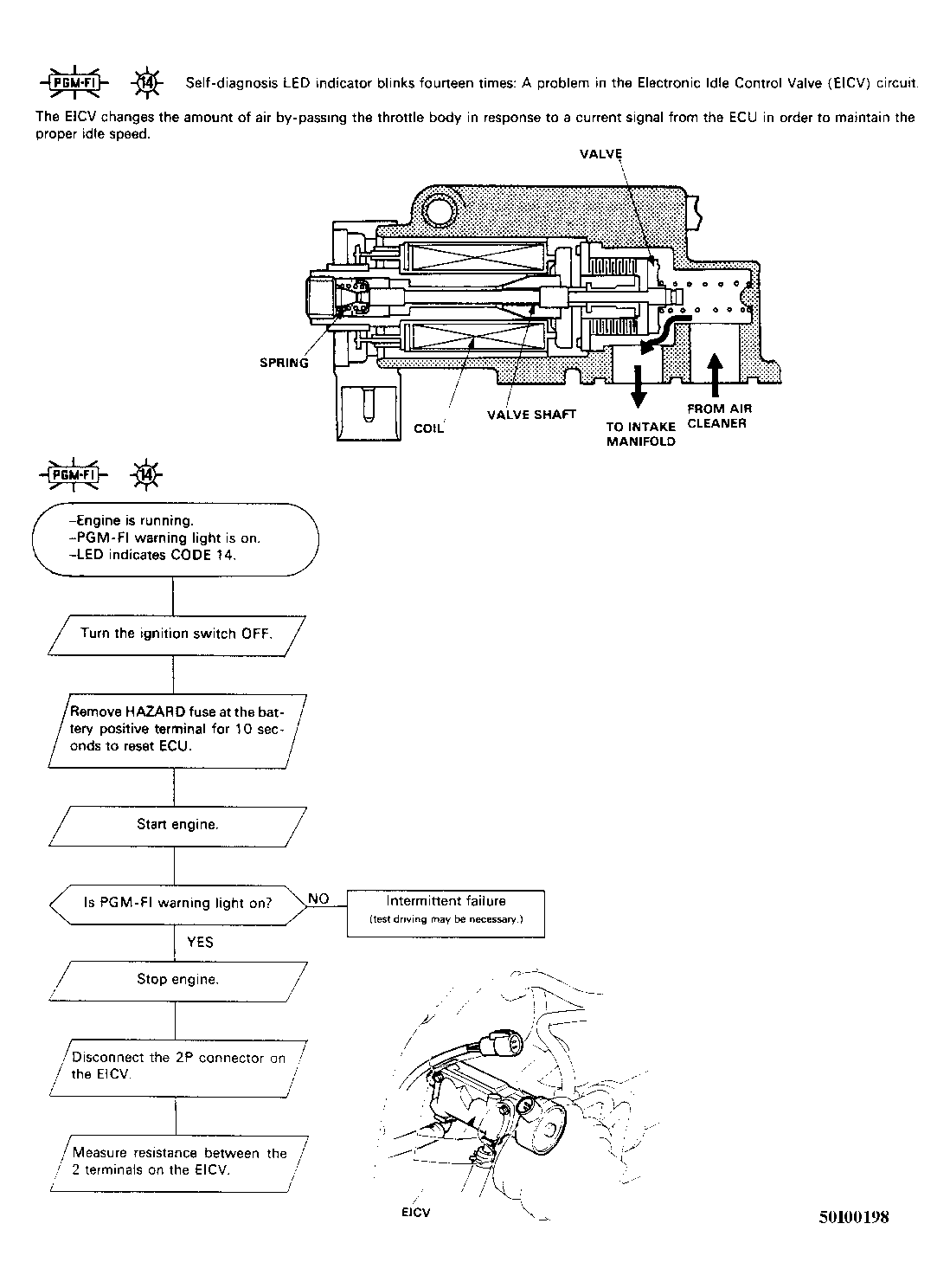

Fig 1: Code 14, Flowchart (1 of 3), Elect Idle Control Valve (EICV) - Revised
Fig 2: Code 14, Flowchart (1 of 3), Elect Idle Control Valve (EICV)

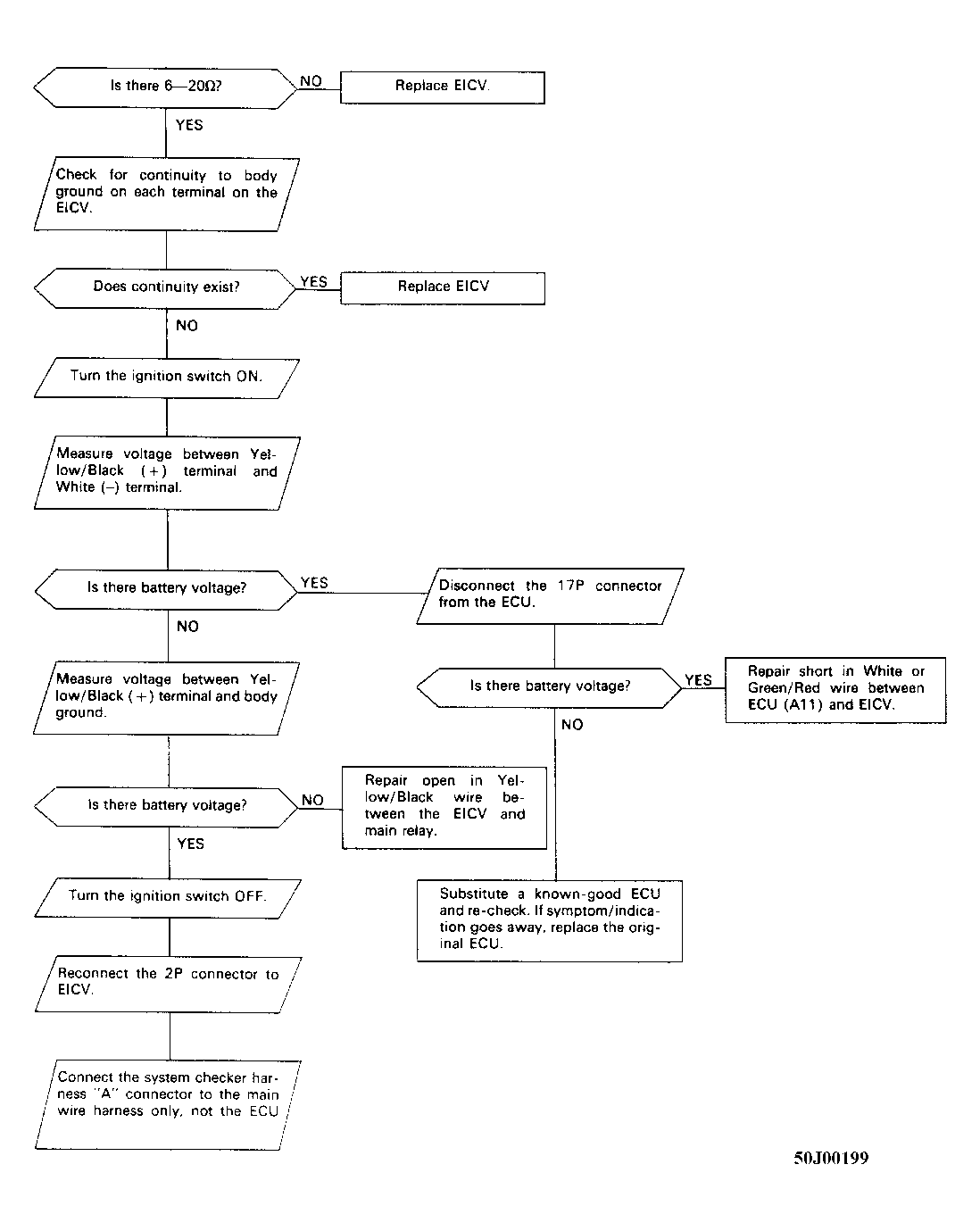

Fig 3: Code 14, Flowchart (2 of 3), Elect Idle Control Valve (EICV)

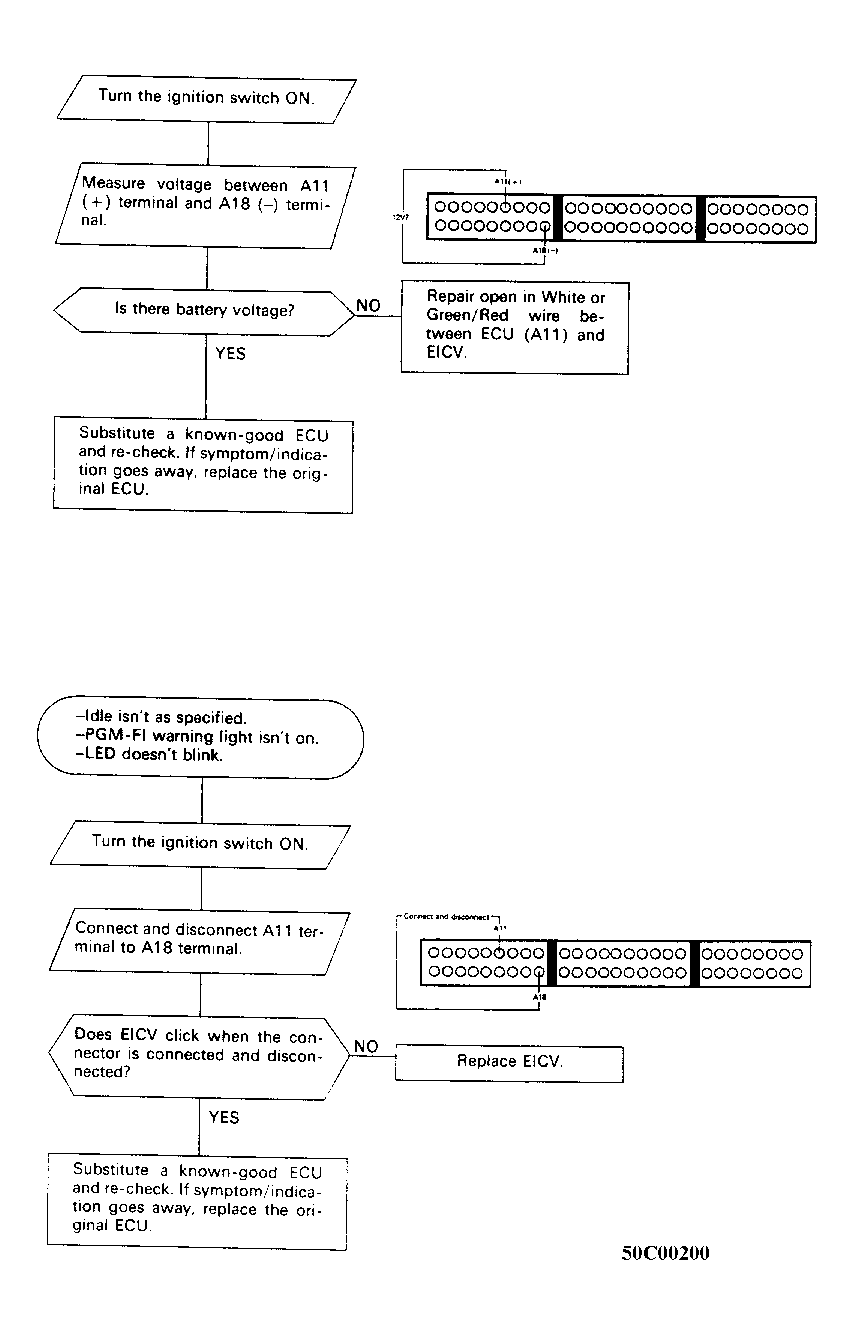

Fig 4: Code 14, Flowchart (3 of 3), Elect Idle Control Valve (EICV)
