Components And Components Location: Components

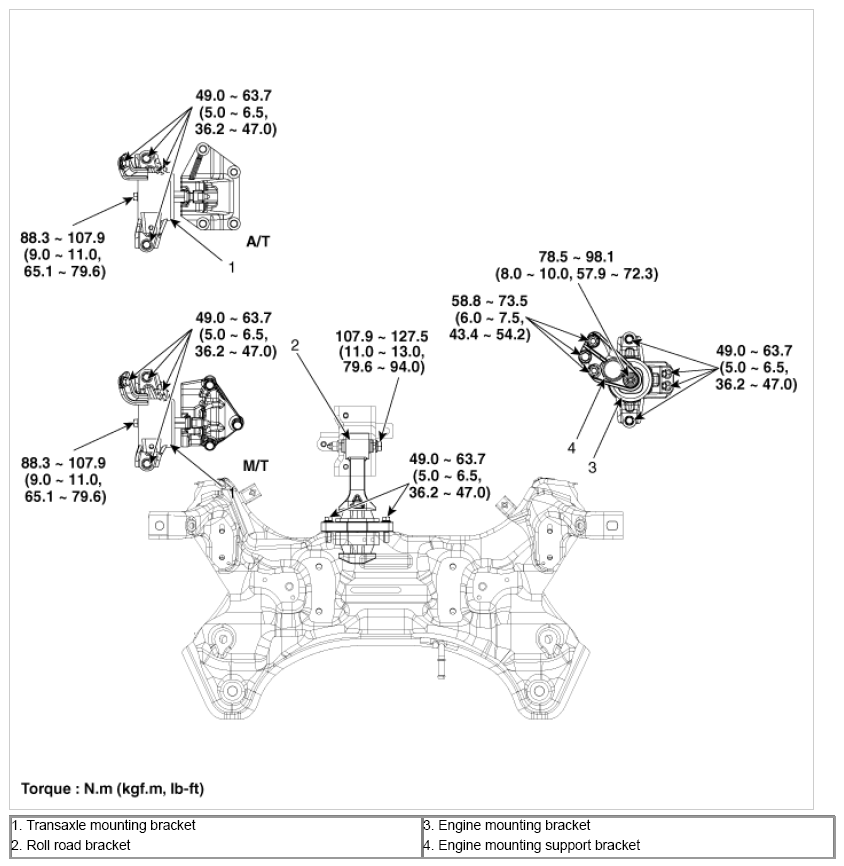

Fig 1: Engine Mounting Components With Torque Specifications

G09772770

Courtesy of KIA MOTORS AMERICA, INC.
